| SPECIFICATION |
DETAILS |
| Product Name |

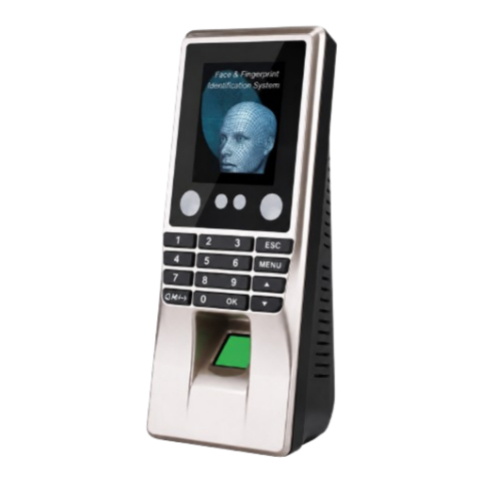

BT-E9 Cloud-Based Face & Fingerprint Time Attendance & Access Control Terminal |
| Model |
BT-E9 |
| Display |
2.8-inch HD Color TFT LCD |
| Face Capacity |
300 Faces |
| Fingerprint Capacity |
3,000 Fingerprints |
| Card Capacity |
1,000 RFID Cards |
| Attendance Record Capacity |
200,000 Records |
| Authentication Methods |
Face Recognition, Fingerprint & Password |
| Recognition Modes |
1:N & 1:1 |
| Face Recognition Speed |
≤1 Second |
| Fingerprint Recognition Speed |
≤0.7 Second |
| Recognition Distance |
30–80 cm |
| False Acceptance Rate (FAR) |
≤0.0001% |
| False Rejection Rate (FRR) |
≤0.01% |
| Communication |
TCP/IP, USB 2.0 Host, BS Card Communication, Optional Wi-Fi |
| Operating System |
Embedded Linux |
| Hardware Platform |
Atmel 400MHz |
| Main Chip |
Atmel 9G25 |
| Keyboard |
4 × 4 Keypad |
| Access Control Interface |
Wiegand 26/34 (Optional), Input/Output Interface (Optional) |
| Lock Output |
NO / NC Relay Output |
| Door Control |
Supports Exit Button & Wireless Remote Control |
| Alarm Functions |
Tamper Alarm, Duress Alarm & Forced Door Opening Alarm |
| Power Supply |
DC 5V |
| Optional Features |
Wi-Fi, Wireless Lock, 5,000/10,000 Fingerprints, 1,000/2,000 Face Capacity, SD Card Support |
| Applications |
Office, Factory, School, Bank, Hotel, Warehouse & Commercial Buildings |
| Warranty |
1-Year Limited Warranty |
