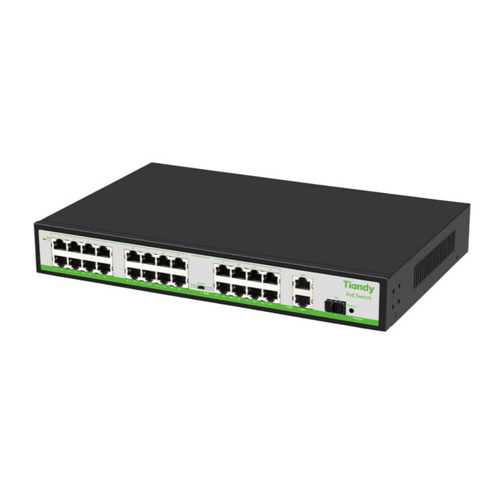

Tiandy TC-P3S027 27 Port PoE Network Switch 24 PoE 2 Uplink 1 SFP
Tiandy TC-P3S027-H/2421/AT/260 27 Port PoE Network Switch (24 PoE + 2 Uplink + 1 SFP) - Image 2
Tiandy TC-P3S027-H/2421/AT/260 27 Port PoE Network Switch (24 PoE + 2 Uplink + 1 SFP) - Image 3
Tiandy TC-P3S027 27 Port PoE Network Switch 24 PoE 2 Uplink 1 SFP

Tiandy TC-P3S027-H/2421/AT/260 27 Port PoE Network Switch (24 PoE + 2 Uplink + 1 SFP)

Tiandy TC-P3S027-H/2421/AT/260 27 Port PoE Network Switch

  • Professional 27 Port PoE Network Switch for Large CCTV Systems
  • 24 × 10/100Mbps PoE Ports for IP Camera Connection
  • 2 × Gigabit Ethernet Uplink Ports for High Speed Network Expansion
  • 1 × Gigabit SFP Fiber Port for Long Distance Connection
  • 260W Total PoE Power Budget for Multiple Security Devices
  • Supports IEEE 802.3af / IEEE 802.3at PoE Standards
  • Supports VLAN, Default and Extend Working Modes
  • Long Distance PoE Transmission Support for CCTV Projects
  • Automatic Adaptive Power Supply for PoE Devices
  • Lightning Surge & ESD Protection for Reliable Operation
  • Durable Metal Housing for Professional Installation
  • Ideal for CCTV Cameras, Access Control, Wireless AP & Enterprise Networks
Categories: , Brand:

Description

Technical Specifications

Specification Details
Brand Tiandy
Product Name Tiandy TC-P3S027-H/2421/AT/260 27 Port PoE Network Switch
Model TC-P3S027-H/2421/AT/260
Device Type PoE Ethernet Switch
Total Ports 27 Ports
PoE Ports 24 × 10/100Mbps PoE Ports
Uplink Ports 2 × 1000Mbps Gigabit Ethernet Ports
SFP Port 1 × 1000Mbps SFP Fiber Port
Switching Capacity 10.8Gbps
Packet Forwarding Rate 8.03Mpps
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Output Maximum 30W Per Port
Total PoE Power 260W
Working Modes VLAN / Default / Extend Mode
Transmission Mode Store and Forward
Network Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z
Protection Lightning Surge & ESD Protection
Power Input AC 100-240V 50/60Hz
Working Temperature -10°C to +50°C
Application IP CCTV Camera, Wireless AP, Access Control & Enterprise Network
Warranty 1-Year Limited Warranty
