| SPECIFICATION |
DETAILS |
| Brand |
TP-Link |
| Series |
Omada |
| Product Name |

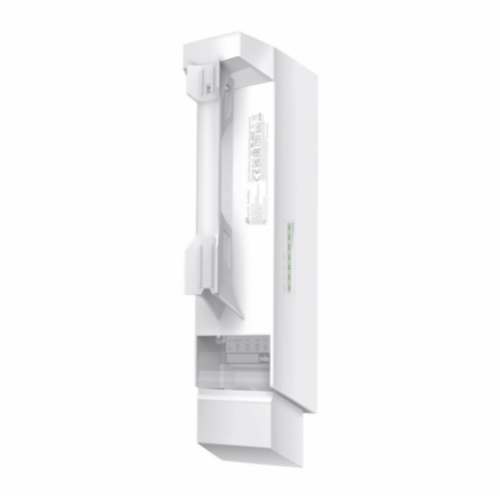

TP-Link Omada EAP115-Bridge KIT 5GHz 300Mbps Long-Range Indoor/Outdoor Wireless Bridge Kit |
| Model |
EAP115-Bridge KIT |
| Device Type |
Wireless Bridge / Indoor & Outdoor Access Point |
| Coverage Distance |
Up to 5 km (5000 m) |
| Wireless Standard |
IEEE 802.11a/b/g/n |
| Frequency |
5 GHz |
| Wireless Speed |
Up to 300 Mbps |
| Ethernet Ports |
3 × 10/100 Mbps RJ45 Ethernet Ports |
| Antenna |
Internal 2×2 Dual-Polarized Directional MIMO Antennas (11 dBi) |
| Antenna Beamwidth |
Horizontal: 35° • Vertical: 35° |
| Power Supply |
12V DC / 24V Passive PoE (Passive PoE Adapter Included) |
| Maximum Power Consumption |
6.5 W |
| Weather Protection |
IP65 Weatherproof Enclosure with 6kV Lightning Protection |
| Mounting |
Pole Mount (Mounting Accessories Included) |
| Wireless Functions |
Mesh, Beamforming, Load Balance, Airtime Fairness, Seamless Roaming (802.11r), Multiple SSIDs (8), Wireless Statistics, Wireless Schedule, Reboot Schedule |
| Wireless Security |
WPA/WPA2-Personal, WPA/WPA2-Enterprise, VLAN, Access Control, Rogue AP Detection, MAC Authentication, Captive Portal Authentication |
| Management |
Omada SDN Controller, Omada App, Web Interface, Cloud Access, SNMP v1/v2c/v3, SSH |
| Dimensions (W × D × H) |
79 × 60 × 224 mm |
| Operating Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% Non-Condensing |
| Storage Temperature |
-40°C to 70°C |
| Storage Humidity |
5%–90% Non-Condensing |
| Certifications |
CE, FCC, RoHS |
| Package Contents |
EAP115-Bridge KIT, Passive PoE Adapter, Power Cord, Mounting Kit, Installation Guide |
| Applications |
Building-to-Building Networking, CCTV Surveillance, Warehouses, Factories, Farms, Schools, Campuses, Industrial Sites and Outdoor Wireless Connectivity |
| Warranty |
1-Year Limited Warranty |
