Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |
| Model | DH-HAC-B2A51P-S2-0360B |

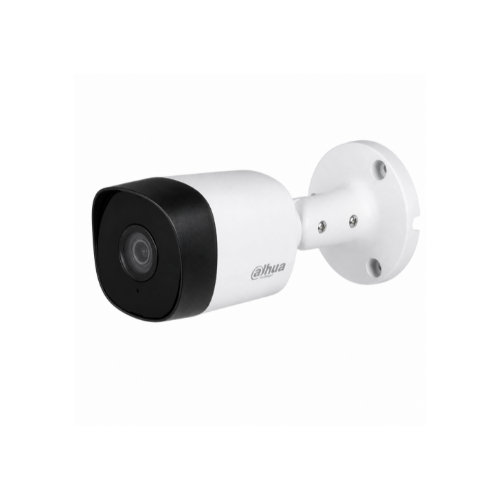

| Product Type | 5MP HDCVI IR Fixed-Focal Bullet Camera |
| Series | Dahua Cooper Series |
| Image Sensor | 1/2.7″ CMOS |
| Maximum Resolution | 2880 × 1620 |
| Pixel | 5MP |
| Scanning System | Progressive Scan |
| Lens Type | Fixed-Focal Lens |
| Focal Length | 3.6mm |
| Lens Mount | M12 |
| Maximum Aperture | F2.0 |
| Field of View | Horizontal: 92° / Vertical: 48° / Diagonal: 109° |
| Minimum Illumination | 0.02 Lux @ F2.0, 30IRE; 0 Lux with IR On |
| IR Illumination Distance | Up to 20m |
| IR Illumination | Smart IR |
| Day & Night | ICR / Auto |
| Video Output | HDCVI / TVI / AHD / CVBS |
| Video Interface | 1 × BNC |
| Maximum Frame Rate | Up to 25fps @ 5MP, 16:9 |
| Supported Video Resolutions | 5MP / 4MP / 1080p / 960H |
| WDR | DWDR |
| Backlight Compensation | BLC / HLC / DWDR |
| Noise Reduction | 2DNR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Electronic Shutter | PAL: 1/25s–1/100,000s; NTSC: 1/30s–1/100,000s |
| Privacy Masking | Up to 8 Areas |
| Mirror | Supported |
| Angle Adjustment | Pan: 0°–360° / Tilt: 0°–90° / Rotation: 0°–360° |
| Power Supply | 12V DC ±30% |
| Power Consumption | Maximum 3.7W with IR On |
| Protection | IP67 |
| Housing Material | Metal |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | Less than 95% RH |
| Dimensions | Approx. 150 × 69.7 × 70mm |
| Net Weight | Approx. 0.31kg |
