Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |

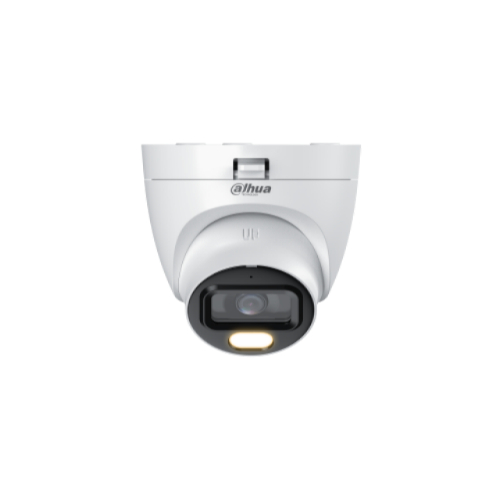

| Model | DH-HAC-HDW1239TLQP-A-LED-0360B-S2 |
| Product Type | Full-Color HDCVI Fixed-Focal Eyeball Camera |
| Series | Dahua Lite Series |
| Camera Type | Eyeball / Indoor & Outdoor |
| Image Sensor | 1/2.8-inch CMOS, 2MP |
| Effective Pixels | 1920 × 1080 |
| Scanning System | Progressive Scan |
| Electronic Shutter | PAL: 1/25s–1/100000s |
| Minimum Illumination | 0.001 lux @ F1.6, 30 IRE; 0 lux with LED illumination |
| S/N Ratio | >65 dB |
| Illumination Type | LED / White Light |
| Illumination Distance | Up to 20m |
| Illumination Control | Auto / Manual |
| Lens Type | Fixed-Focal |
| Lens Mount | Built-in M12 |
| Focal Length | 3.6mm |
| Maximum Aperture | F1.6 |
| Horizontal Field of View | 86° |
| Vertical Field of View | 46° |
| Diagonal Field of View | 101° |
| Close Focus Distance | 1.1m |
| DORI Detection | 53.7m |
| DORI Observation | 21.5m |
| DORI Recognition | 10.7m |
| DORI Identification | 5.4m |
| Video Resolution | 1080p (1920 × 1080), 960H (704 × 576) |
| Frame Rate | HDCVI: 25fps @ 1080p; AHD: 25fps @ 1080p; TVI: 25fps @ 1080p; CVBS: 25fps @ 960H |
| Video Output | 1 × BNC, Switchable HDCVI / TVI / AHD / CVBS |
| WDR | 130dB WDR |
| Backlight Compensation | BLC / HLC |
| Noise Reduction | 3D DNR |
| Super Adapt | Yes |
| White Balance | Auto / Area White Balance |
| Gain Control | Auto / Manual |
| Smart Illumination | Yes |
| Mirror | Yes |
| Privacy Masking | Up to 8 areas |
| Audio | Built-in Microphone |
| Power Supply | 12V DC ±30% |
| Power Consumption | ≤3.3W with illumination on |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Protection | IP67 |
| Casing Material | Metal |
| Dimensions | Ø97.1mm × 92.9mm |
| Net Weight | 0.22kg |
| Gross Weight | 0.28kg |
| Installation | Wall / Ceiling / Pole Mount |
