Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |

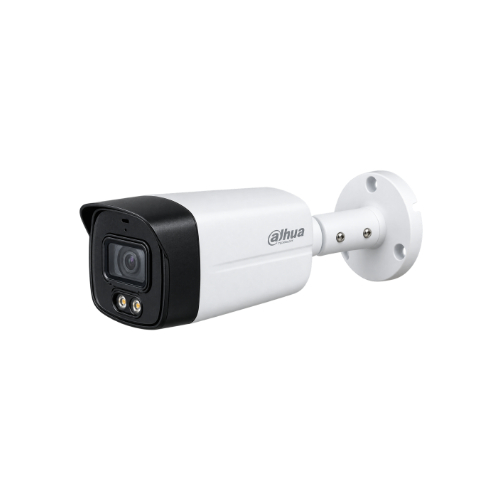

| Model | DH-HAC-HFW1509TLMP-IL-A |
| Product Type | Smart Dual Light HDCVI Bullet Camera |
| Series | Dahua Lite Series |
| Video Standard | PAL |
| Image Sensor | 5MP CMOS |
| Maximum Resolution | 2880 × 1620 |
| Pixel | 5MP |
| Scanning System | Progressive Scan |
| Electronic Shutter | PAL: 1/3s–1/100000s; NTSC: 1/4s–1/100000s |
| Minimum Illumination | 0.001 lux @ F1.0 Color; 0.0001 lux @ F1.0 B/W; 0 lux with illuminator on |
| S/N Ratio | >65dB |
| Dual Light Technology | Smart Dual Light |
| IR Illumination Distance | Up to 40m |
| Warm Light Illumination Distance | Up to 40m |
| Illuminator Control | Auto / Manual |
| Illumination Modes | Smart IR & Warm Light / Warm Light Mode / IR Mode |
| Lens Type | Fixed-Focal |
| Lens Mount | M12 |
| Focal Length | 3.6mm |
| Maximum Aperture | F1.0 |
| Horizontal Field of View | 89° |
| Vertical Field of View | 47° |
| Diagonal Field of View | 104° |
| Close Focus Distance | 2.2m |
| DORI Detection | 78m |
| DORI Observation | 31.2m |
| DORI Recognition | 15.6m |
| DORI Identification | 7.8m |
| Video Frame Rate | CVI PAL: 5MP @ 25fps, 4MP @ 25fps, 1080p @ 25fps |
| AHD Frame Rate | PAL: 4MP @ 25fps |
| TVI Frame Rate | PAL: 4MP @ 25fps |
| CVBS | PAL: 960H |
| Video Resolution | 5MP (2880 × 1620), 4MP (2560 × 1440), 1080p (1920 × 1080), 960H |
| Video Output | 1 × BNC, Switchable CVI / TVI / AHD / CVBS |
| WDR | 120dB True WDR |
| Backlight Compensation | BLC / HLC / WDR / HLC-Pro |
| Noise Reduction | 3D NR |
| Day/Night | Auto ICR / Color / B/W |
| White Balance | Auto / Area White Balance |
| Gain Control | Auto / Manual |
| Super Adapt | Yes |
| Digital Zoom | 4× |
| Defog | Electronic Defog |
| Mirror | Yes |
| Privacy Masking | Up to 8 areas |
| Audio | Built-in Microphone |
| Audio Input | 1-Channel Built-in MIC |
| Pan Range | 0°–360° |
| Tilt Range | 0°–90° |
| Rotation Range | 0°–360° |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 5.7W with LED On |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | <95% RH, non-condensing |
| Protection | IP67 |
| Casing Material | Metal Front Cover + Plastic Rear Barrel + Metal Bracket |
| Dimensions | 198.4 × 80.2 × 76.2mm |
| Net Weight | 0.34kg |
| Gross Weight | 0.51kg |
| Installation | Wall Mount / Ceiling Mount / Vertical Pole Mount |
