Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |

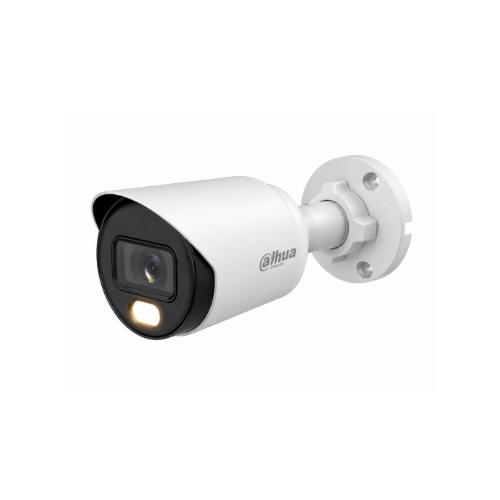

| Model | DH-HAC-HFW1509TP-A-LED-0360B |
| Product Type | Full-Color Starlight HDCVI Fixed-Focal Bullet Camera |
| Series | Dahua Lite Plus Series |
| Video Standard | PAL |
| Image Sensor | 1/2.7-inch CMOS |
| Effective Pixels | 2592 × 1944, 5MP |
| Scanning System | Progressive Scan |
| Electronic Shutter | PAL: 1/25s–1/100000s |
| S/N Ratio | >65dB |
| Minimum Illumination | 0.005 Lux/F1.2; 0 Lux with White Light On |
| Full-Color Technology | Full-Color Starlight |
| Fill Light Type | White Light / Warm Supplemental Light |
| Fill Light Distance | Up to 20m |
| Fill Light Control | Auto / Manual |
| Lens Type | Fixed-Focal |
| Lens Mount | M12 |
| Focal Length | 3.6mm |
| Maximum Aperture | F1.2 |
| Field of View | Diagonal: 111° / Horizontal: 83° / Vertical: 56° |
| Close Focus Distance | 2.1m |
| DORI Detection | 80m |
| DORI Observation | 32m |
| DORI Recognition | 16m |
| DORI Identification | 8m |
| HDCVI Frame Rate | 5MP @ 20fps; 4MP @ 25fps; 1080P @ 25fps |
| AHD Frame Rate | 5MP @ 20fps; 4MP @ 25fps |
| TVI Frame Rate | 5MP @ 20fps; 4MP @ 25fps |
| CVBS | 960H |
| Video Resolution | 5MP (2592 × 1944), 4MP (2560 × 1440), 1080P (1920 × 1080), 960H |
| Video Output | 1 × BNC, Switchable HDCVI / TVI / AHD / CVBS |
| Backlight Compensation | BLC / HLC / WDR |
| WDR | DWDR |
| Noise Reduction | 2D NR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Smart Light | Yes |
| Mirror | Off / On |
| Privacy Masking | Off / On, up to 8 areas |
| Audio | Built-in Microphone |
| Audio Interface | Built-in Mic (-A) |
| Power Supply | 12V ±30% DC |
| Power Consumption | Maximum 3.0W with White Light On |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | Less than 95% RH, non-condensing |
| Protection | IP67 |
| Housing | Metal |
| Pan Range | 0°–360° |
| Tilt Range | 0°–180° |
| Rotation Range | 0°–360° |
| Dimensions | 174.5 × 70.6 × 72.3mm |
| Net Weight | 0.33kg |
| Gross Weight | 0.44kg |
| Installation | Wall Mount / Ceiling Mount / Vertical Pole Mount |
