Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |

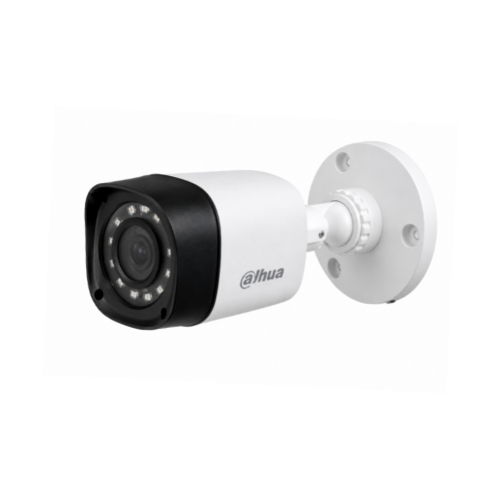

| Model | DH-HAC-HFW1800RP-0360B |
| Product Type | 4K HDCVI IR Bullet Camera |
| Series | Dahua Lite Series |
| Image Sensor | 1/2.7-inch CMOS |
| Effective Pixels | 3840 × 2160, 4K / 8MP |
| Scanning System | Progressive Scan |
| Electronic Shutter | PAL: 1/25s–1/100000s; NTSC: 1/30s–1/100000s |
| Minimum Illumination | 0.03 Lux @ F2.0, 30 IRE; 0 Lux with IR On |
| S/N Ratio | >65dB |
| IR Illumination Distance | Up to 20m |
| IR Control | Auto / Manual |
| IR LEDs | 12 LEDs |
| Lens Type | Fixed-Focal |
| Lens Mount | M12 |
| Focal Length | 3.6mm |
| Maximum Aperture | F2.0 |
| Horizontal Field of View | 87° |
| Vertical Field of View | 47° |
| Diagonal Field of View | 104° |
| Close Focus Distance | 1.8m |
| DORI Detection | 106.7m |
| DORI Observation | 42.7m |
| DORI Recognition | 21.3m |
| DORI Identification | 10.7m |
| HDCVI Frame Rate | 4K @ 15fps; 5MP @ 20fps; 4MP @ 25/30fps |
| AHD Frame Rate | 4K @ 15fps |
| TVI Frame Rate | 4K @ 15fps |
| CVBS | 960H |
| Video Resolution | 4K (3840 × 2160); 5MP (2592 × 1944); 4MP (2560 × 1440); 960H |
| Video Output | 1 × BNC, Switchable HDCVI / TVI / AHD / CVBS |
| Day/Night | Auto Switch by ICR |
| WDR | DWDR |
| Backlight Compensation | BLC / HLC / WDR |
| Noise Reduction | 2D NR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Smart IR | Yes |
| Mirror | Off / On |
| Privacy Masking | Off / On, up to 8 rectangular areas |
| Pan Range | 0°–360° |
| Tilt Range | 0°–90° |
| Rotation Range | 0°–360° |
| Transmission Distance | Up to 700m over coaxial cable under suitable conditions |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max. 3.56W with IR On |
| Operating Temperature | -40°C to +55°C |
| Operating Humidity | Less than 95% RH, non-condensing |
| Protection Grade | IP67 |
| Casing Material | Plastic |
| Dimensions | 154.3 × 69.8 × 69.8mm |
| Net Weight | 0.15kg |
| Gross Weight | 0.21kg |
| Certifications | CE / FCC / UL |
