Dahua

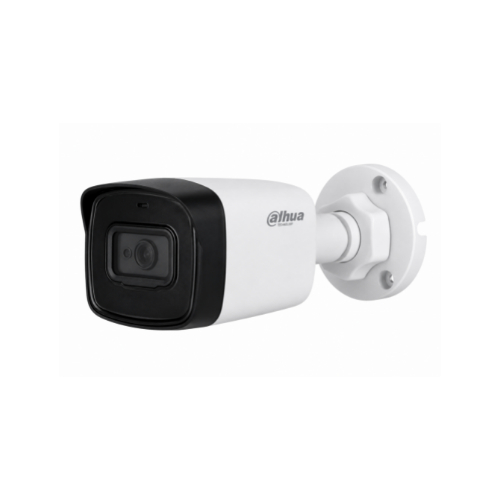

Dahua DH-HAC-HFW1800TLP-A 8MP 4K HDCVI IR Bullet Camera

8MP 4K HDCVI bullet camera with high-resolution 3840 × 2160 video
1/2.7-inch 4K CMOS image sensor delivers detailed surveillance images
3.6mm fixed-focal lens provides a wide viewing angle for general surveillance
Smart IR technology provides up to 80m infrared illumination for night-time monitoring
Built-in microphone supports audio transmission over the coaxial cable
Supports real-time 4K video through HDCVI
Supports HDCVI, TVI, AHD and CVBS switchable video output
DWDR improves image details in scenes with strong backlighting and high contrast
2D Digital Noise Reduction helps reduce image noise for clearer surveillance footage
Smart IR automatically adjusts infrared intensity to help prevent overexposure
Supports BLC and HLC for improved image quality in challenging lighting conditions
Automatic ICR day/night switching provides reliable 24-hour surveillance
Up to 8 privacy mask areas for protecting sensitive zones
IP67 protection makes the camera suitable for outdoor installations
Suitable for homes, offices, shops, warehouses, factories, parking areas and commercial CCTV systems

Pricing depends on site requirements. We quote hardware, installation and training as one package.

Specification	Details
Brand	Dahua
Model	DH-HAC-HFW1800TLP-A-0360B
Product Type	4K HDCVI IR Bullet Camera
Series	Dahua Lite Series
Video Standard	PAL
Image Sensor	1/2.7-inch CMOS
Resolution	3840 × 2160, 8MP / 4K
Scanning System	Progressive Scan
Minimum Illumination	0.03 Lux @ F2.0; 0 Lux with IR On
S/N Ratio	>65dB
IR Illumination Distance	Up to 80m
IR Control	Auto / Manual
Smart IR	Yes
Lens Type	Fixed-Focal
Lens Mount	M12
Focal Length	3.6mm
Maximum Aperture	F2.0
Horizontal Field of View	87°
Close Focus Distance	1.9m
HDCVI Frame Rate	4K @ 25/30fps; 5MP @ 20fps; 4MP @ 25/30fps
AHD Frame Rate	4K @ 15fps
TVI Frame Rate	4K @ 15fps
CVBS	960H
Video Output	1 × BNC, HDCVI / TVI / AHD / CVBS Switchable
Day/Night	Auto ICR / Color / B&W
WDR	DWDR
Backlight Compensation	BLC / HLC / DWDR
Noise Reduction	2D NR
White Balance	Auto / Manual
Gain Control	Auto / Manual
Privacy Masking	Up to 8 rectangular areas
Audio	Built-in Microphone
Audio Transmission	Audio over Coaxial Cable
Transmission Distance	Long-distance HDCVI transmission over coaxial cable
Power Supply	12V DC ±30%
Power Consumption	Maximum approximately 6W
Operating Temperature	-40°C to +60°C
Operating Humidity	Less than 95% RH, non-condensing
Protection	IP67
Housing	Plastic + Metal
Dimensions	Approximately 198.9 × 80.2 × 76.2mm
