Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |

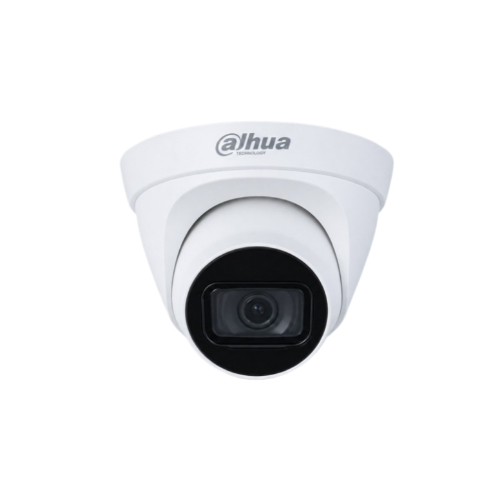

| Model | DH-IPC-HDW1230T1P-0360B-S5 |
| Product Type | 2MP IR Fixed-Focal Eyeball Network Camera |
| Series | Dahua Entry Series |
| Image Sensor | 1/2.8-inch CMOS |
| Effective Pixels | 1920 × 1080 |
| Resolution | 2MP Full HD |
| Scanning System | Progressive Scan |
| Minimum Illumination | 0.01 Lux @ F2.0; 0 Lux with IR |
| Lens Type | Fixed-Focal |
| Focal Length | 3.6mm |
| Maximum Aperture | F2.0 |
| Horizontal Field of View | 87° |
| Vertical Field of View | 47° |
| Diagonal Field of View | 104° |
| Minimum Focus Distance | 0.8m |
| IR Distance | Up to 30m |
| IR LED | 1 IR LED |
| Day/Night | Auto / Manual, ICR Mechanical IR Filter |
| Video Compression | H.265 / H.264 / H.264H / H.264B / MJPEG |
| Smart Codec | H.265+ / H.264+ |
| Main Stream | 1920 × 1080 @ 1–25/30fps |
| Sub Stream | 704 × 576 @ 1–25fps / 704 × 480 @ 1–30fps |
| Video Streams | 2 Streams |
| Bit Rate Control | CBR / VBR |
| H.264 Bit Rate | 32Kbps–6144Kbps |
| H.265 Bit Rate | 12Kbps–6400Kbps |
| Wide Dynamic Range | DWDR |
| Noise Reduction | 3D DNR |
| Backlight Compensation | BLC / HLC |
| Motion Detection | Supported, 4 Zones |
| Region of Interest | Supported, 4 Zones |
| Image Rotation | 90° / 180° / 270° |
| Privacy Masking | 4 Areas |
| Network Interface | 1 × RJ-45 10/100 Mbps Ethernet |
| Network Protocols | ARP / DDNS / DHCP / DNS / FTP / HTTP / IPv4 / IPv6 / Multicast / NTP / RTCP / RTP / RTSP / SMTP / TCP / UDP |
| ONVIF | ONVIF Profile S |
| P2P | Supported |
| Maximum Connections | 6 Total, up to 36 Mbps |
| Mobile Support | iOS / Android |
| Mobile Application | DMSS |
| Power Supply | 12V DC / PoE 802.3af |
| Power Consumption | 1.4W @ 12V DC; 2.2W @ PoE typical; up to 3.5W DC / 4.6W PoE |
| Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% RH |
| Housing Material | Metal + Plastic |
| Mount Type | M12 |
| Color | White |
| Dimensions | Ø109 × 85.5mm |
| Net Weight | 0.24kg |
| Gross Weight | 0.37kg |
