Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |
| Model | DH-IPC-HDW1239T1P-LED-S5-0360B |

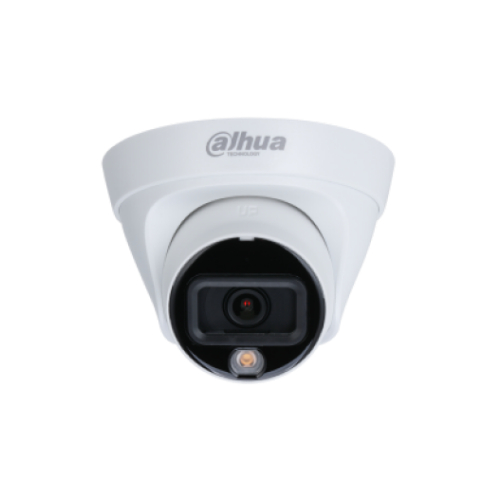

| Product Type | 2MP Full-Color Fixed-Focal Eyeball Network Camera |
| Series | Dahua Entry Series |
| Image Sensor | 1/2.8-inch CMOS |
| Effective Pixels | 1920 × 1080 |
| Resolution | 2MP Full HD |
| Scanning System | Progressive Scan |
| Minimum Illumination | 0.005 Lux @ F1.6, 30 IRE (Color); 0 Lux with illumination |
| Lens Type | Fixed-Focal |
| Lens Mount | Built-in M12 |
| Focal Length | 3.6mm |
| Maximum Aperture | F1.6 |
| Horizontal Field of View | 88° |
| Vertical Field of View | 46° |
| Diagonal Field of View | 104° |
| Minimum Focus Distance | 1.1m |
| Illumination Distance | Up to 15m |
| Illuminator | 1 × Warm-Spectrum LED |
| Illumination Control | Auto / Manual |
| Day/Night | Full-Color / Auto |
| Video Compression | H.265 / H.264 / H.264B / MJPEG (Sub Stream) |
| Smart Codec | Smart H.265+ / Smart H.264+ |
| Streaming Capability | 2 Streams |
| Main Stream | 1920 × 1080 @ 1–25fps |
| Sub Stream | 704 × 576 @ 1–25fps |
| Electronic Shutter | Auto / Manual, 1/3s–1/100000s |
| Wide Dynamic Range | DWDR |
| Noise Reduction | 3D DNR |
| Backlight Compensation | BLC / HLC |
| Region of Interest | 4 Zones |
| Motion Detection | Supported |
| Image Rotation | 0°–360° Pan / 0°–78° Tilt / 0°–360° Rotation |
| Digital Zoom | 16× |
| Privacy Masking | Supported |
| Network Interface | RJ-45 10/100 Mbps Ethernet |
| Network Protocols | HTTP / HTTPS / TCP / UDP / ARP / RTP / RTSP / SMTP / FTP / DHCP / DNS / DDNS / NTP / IPv4 / IPv6 / Multicast |
| Interoperability | ONVIF Profile S / Profile T / CGI |
| P2P | Supported |
| Mobile Client | iOS / Android |
| Power Supply | 12V DC / PoE 802.3af |
| Power Consumption | Basic: 1.4W DC / 2.4W PoE; Maximum: 4.2W DC / 5.3W PoE |
| Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% RH |
| Housing Material | Metal + Plastic |
| Dimensions | Ø109mm × 85.5mm |
| Net Weight | 0.24kg |
| Gross Weight | 0.37kg |
