Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |
| Model | DH-IPC-HFW1230S1P-0360B-S5 |

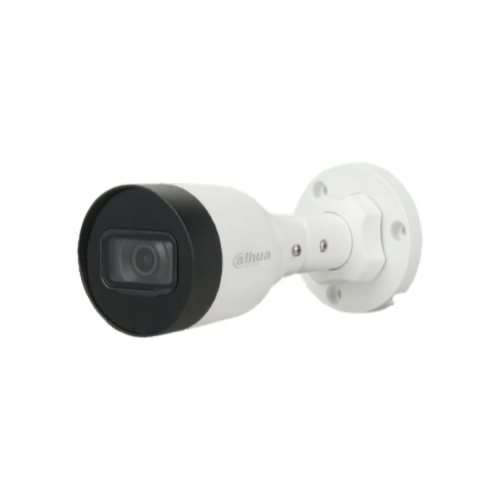

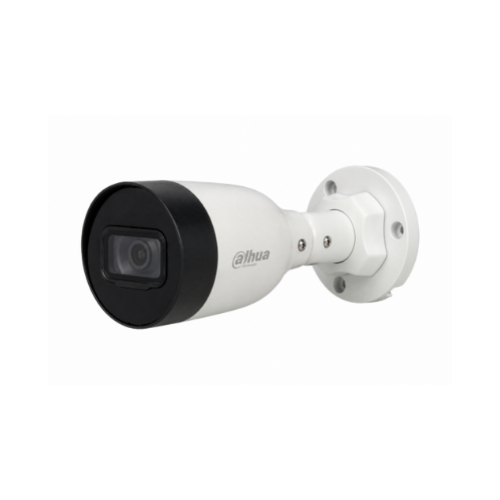

| Product Type | 2MP IR Fixed-Focal Bullet Network Camera |
| Series | Dahua Entry Series |
| Image Sensor | 1/2.8-inch CMOS |
| Maximum Resolution | 1920 × 1080 (2MP) |
| Scanning System | Progressive Scan |
| Minimum Illumination | 0.01 lux @ F2.0 Color; 0.001 lux @ F2.0 B/W; 0 lux with illuminator on |
| Lens Type | Fixed-Focal |
| Lens Mount | M12 |
| Focal Length | 3.6mm |
| Maximum Aperture | F2.0 |
| Field of View | Horizontal 102° / Vertical 54° / Diagonal 120° |
| Close Focus Distance | 0.8m |
| DORI Distance | Detect 49.7m / Observe 19.9m / Recognize 9.9m / Identify 5.0m |
| IR Distance | Up to 30m |
| IR Illuminator | 1 × IR LED |
| Day/Night | Auto (ICR) / Color / B&W |
| Video Compression | H.265 / H.264 / H.264B / MJPEG |
| Smart Codec | Smart H.265+ / Smart H.264+ |
| Main Stream | 1920 × 1080 @ 1–25/30fps |
| Sub Stream | 704 × 576 @ 1–25fps / 704 × 480 @ 1–30fps |
| Stream Capability | 2 Streams |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 32Kbps–6144Kbps; H.265: 12Kbps–6144Kbps |
| Wide Dynamic Range | DWDR |
| Noise Reduction | 3D NR |
| Backlight Compensation | BLC / HLC |
| Motion Detection | 4 Areas |
| Region of Interest | 4 Areas |
| Smart Illumination | Yes |
| Privacy Masking | 4 Areas |
| Network Port | RJ-45 10/100 Base-T |
| Network Protocols | IPv4 / IPv6 / HTTP / TCP / UDP / ARP / RTP / RTSP / RTCP / SMTP / FTP / DHCP / DNS / DDNS / NTP / Multicast |
| Interoperability | ONVIF Profile S / CGI / P2P |
| Maximum Users / Hosts | 6 users; total bandwidth 36 Mbps |
| Management Software | Smart PSS / DSS / DMSS |
| Mobile Client | iOS / Android |
| Power Supply | 12V DC / PoE 802.3af |
| Power Consumption | Basic: 1.4W DC / 2.2W PoE; Maximum: 3.4W DC / 4.5W PoE |
| Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% RH |
| Housing Material | Metal + Plastic |
| Dimensions | 162.6 × Φ70 mm |
| Net Weight | 0.22kg |
