Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |
| Model | DH-IPC-HFW1239S1P-A-LED-S5-0360B |

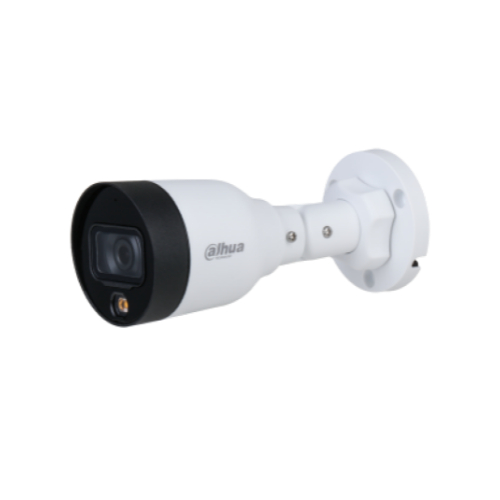

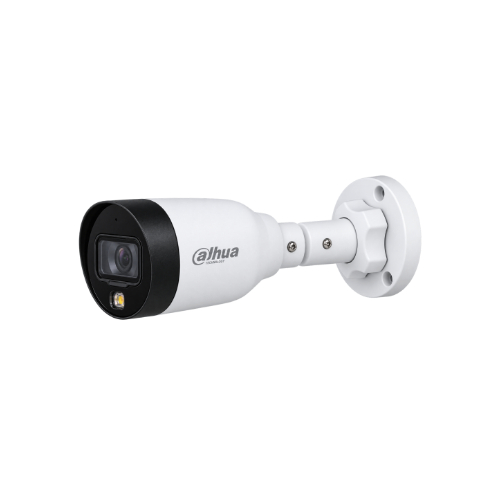

| Product Type | 2MP Full-Color Fixed-Focal Bullet Network Camera |
| Image Sensor | 1/2.8-inch CMOS |
| Maximum Resolution | 1920 × 1080 (2MP) |
| Scanning System | Progressive Scan |
| Minimum Illumination | 0.005 Lux @ F1.6 |
| Lens Type | Fixed-Focal |
| Lens Mount | M12 |
| Focal Length | 3.6mm |
| Maximum Aperture | F1.6 |
| Horizontal Field of View | 88° |
| Vertical Field of View | 44° |
| Diagonal Field of View | 105° |
| Close Focus Distance | 1.3m |
| DORI – Detect | 58.9m |
| DORI – Observe | 23.6m |
| DORI – Recognize | 11.8m |
| DORI – Identify | 5.9m |
| Illumination Distance | Up to 15m Warm Light |
| Illuminator | 1 × Warm-Spectrum LED |
| Day/Night | Color / B&W |
| Video Compression | H.265 / H.264 / H.264H / H.264B / MJPEG |
| Smart Codec | Smart H.265+ / Smart H.264+ |
| Main Stream | 1920 × 1080 @ 1–25/30fps |
| Sub Stream | 704 × 576 @ 1–25fps / 704 × 480 @ 1–30fps |
| Stream Capability | 2 Streams |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 32Kbps–6144Kbps; H.265: 12Kbps–6144Kbps |
| Wide Dynamic Range | DWDR |
| Noise Reduction | 3D NR |
| Backlight Compensation | BLC / HLC |
| Motion Detection | 4 Areas |
| Region of Interest | 4 Areas |
| Smart Illumination | Supported |
| Image Rotation | 0° / 90° / 180° / 270° |
| Privacy Masking | 4 Areas |
| Built-in Microphone | Yes |
| Audio Compression | G.711A / G.711Mu / G.726 |
| Network Port | RJ-45 10/100 Base-T |
| Network Protocols | IPv4 / IPv6 / HTTP / TCP / UDP / ARP / RTP / RTSP / RTCP / SMTP / FTP / DHCP / DNS / DDNS / NTP / Multicast / ICMP / IGMP |
| Interoperability | ONVIF Profile S / CGI / P2P / Genetec |
| Maximum Users / Hosts | 6 users / 36 Mbps total bandwidth |
| Storage | FTP |
| Management Software | Smart PSS / DSS / DMSS |
| Mobile Client | iOS / Android |
| Power Supply | 12V DC / PoE 802.3af |
| Basic Power Consumption | 1.2W DC / 2W PoE |
| Maximum Power Consumption | 4.2W DC / 5.4W PoE |
| Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% |
| Housing Material | Metal + Plastic |
| Dimensions | 162.1 × Ø70.1mm |
| Net Weight | 0.31kg |
