Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |
| Model | DH-IPC-HFW1239S1P-LED-S5-0360B |

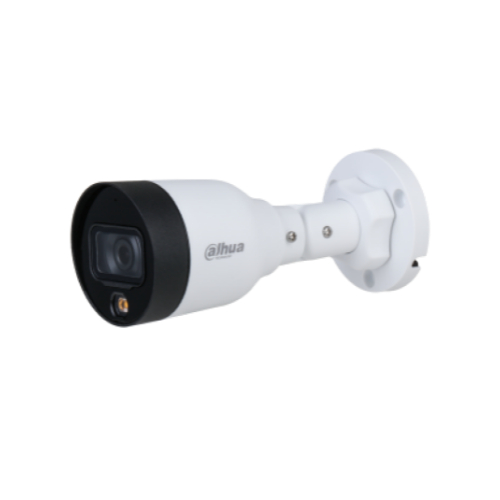

| Product Type | 2MP Full-Color Fixed-Focal Bullet Network Camera |
| Image Sensor | 1/2.8-inch CMOS |
| Effective Pixels | 1920 × 1080 |
| Resolution | 2MP Full HD |
| Scanning System | Progressive Scan |
| Minimum Illumination | 0.005 Lux @ F1.6, 30 IRE (Color); 0.0005 Lux @ F1.6, 30 IRE (B/W); 0 Lux with illumination |
| Signal-to-Noise Ratio | >56dB |
| Lens Type | Fixed-Focal |
| Lens Mount | Built-in M12 |
| Focal Length | 3.6mm |
| Maximum Aperture | F1.6 |
| Horizontal Field of View | 88° |
| Vertical Field of View | 46° |
| Diagonal Field of View | 104° |
| Minimum Focus Distance | 1.1m |
| DORI – Detect | 54.8m |
| DORI – Observe | 21.9m |
| DORI – Recognize | 11m |
| DORI – Identify | 5.5m |
| LED Illumination Distance | Up to 15m |
| Illuminator | 1 × Warm-Spectrum LED |
| Day/Night | Color / B&W |
| Video Compression | H.265 / H.264 / MJPEG |
| Smart Codec | Smart H.265+ / Smart H.264+ |
| Main Stream | 1920 × 1080 @ 1–25fps |
| Sub Stream | 704 × 576 @ 1–25fps |
| Video Streams | 2 Streams |
| Bit Rate Control | CBR / VBR |
| H.264 Bit Rate | 32Kbps–6144Kbps |
| H.265 Bit Rate | 12Kbps–6144Kbps |
| Wide Dynamic Range | DWDR |
| Noise Reduction | 3D DNR |
| Backlight Compensation | BLC / HLC |
| Motion Detection | 4 Zones |
| Region of Interest | 4 Zones |
| Smart Illumination | Supported |
| Image Rotation | 90° / 180° / 270° |
| Privacy Masking | 4 Zones |
| Network Interface | RJ-45 10/100 Mbps Ethernet |
| Network Protocols | ARP / DDNS / DHCP / DNS / FTP / HTTP / IPv4 / IPv6 / Multicast / NTP / RTCP / RTP / RTSP / SMTP / TCP / UDP |
| Interoperability | ONVIF Profile S / CGI / P2P |
| Maximum Connections | 6, Total Stream 36Mbps |
| Storage | FTP |
| Management Software | Smart PSS / DSS / DMSS |
| Mobile Client | iOS / Android |
| Power Supply | 12V DC / PoE 802.3af |
| Power Consumption | Basic: 1.4W DC / 2.4W PoE; Maximum: 4.2W DC / 5.3W PoE |
| Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% |
| Housing Material | Metal + Plastic |
| Dimensions | Ø70mm × 162.6mm |
| Net Weight | 0.22kg |
| Gross Weight | 0.34kg |
