Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |
| Model | DH-IPC-P3D-3F-PV (PICOODUAL6MP) |

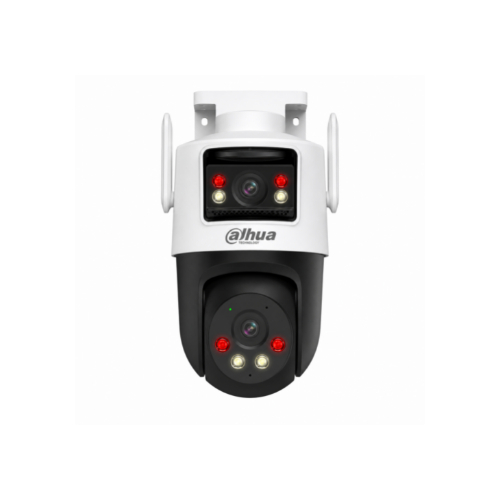

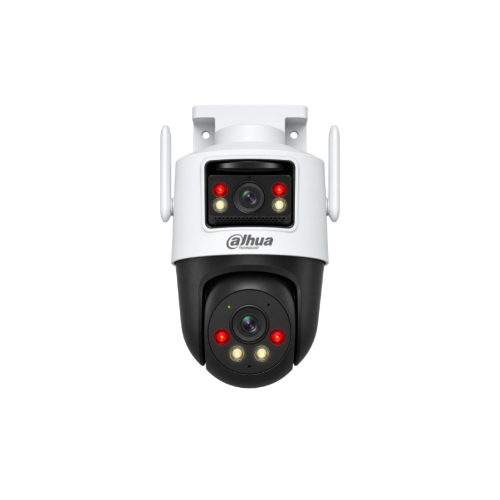

| Product Type | 6MP Outdoor Wi-Fi Dual-Lens Pan & Tilt Network Camera |
| Series | Dahua Picoo Dual Series |
| Total Resolution | 6MP (3MP + 3MP) |
| Fixed Lens Sensor | 1/2.8-inch CMOS |
| PT Lens Sensor | 1/2.8-inch CMOS |
| Maximum Resolution | 2304 × 1296 per lens |
| Fixed Lens Focal Length | 3.6mm |
| PT Lens Focal Length | 3.6mm |
| Maximum Aperture | F1.6 |
| Fixed Lens Horizontal FOV | 86° |
| Fixed Lens Vertical FOV | 46° |
| Fixed Lens Diagonal FOV | 103° |
| PT Lens Horizontal FOV | 86° |
| PT Lens Vertical FOV | 46° |
| PT Lens Diagonal FOV | 103° |
| Pan Range | 0°–352° |
| Tilt Range | 0°–90° |
| IR Illumination | Up to 30m |
| Warm Light Illumination | Up to 30m |
| Illuminators | 2 × IR LED + 2 × Warm Light per lens |
| Smart Dual Light | Supported |
| Human Detection | Supported on both lenses |
| Vehicle Detection | Supported on both lenses |
| Automatic Tracking | Supported |
| Video Compression | H.265 / H.264 / H.264H / H.264B / MJPEG |
| Main Stream | 2304 × 1296 @ up to 15fps |
| Sub Stream | 640 × 360 @ up to 15fps |
| WDR | DWDR |
| Motion Detection | Supported |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Two-Way Talk | Supported |
| Audio Compression | G.711A |
| Network Port | RJ-45 10/100 Base-T |
| Wi-Fi | IEEE 802.11b/g/n/ax, 2.4GHz |
| Bluetooth Pairing | Supported |
| Storage | MicroSD up to 256GB |
| Management Software | DMSS |
| Mobile Client | iOS / Android |
| Power Supply | 12V DC |
| Basic Power Consumption | 2.3W |
| Maximum Power Consumption | 10W |
| Operating Temperature | -30°C to +50°C |
| Operating Humidity | ≤95% RH |
| Protection | IP66 |
| Housing Material | Plastic |
| Dimensions | 159.4 × 119.1 × 210mm |
| Net Weight | 585g |
