Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |

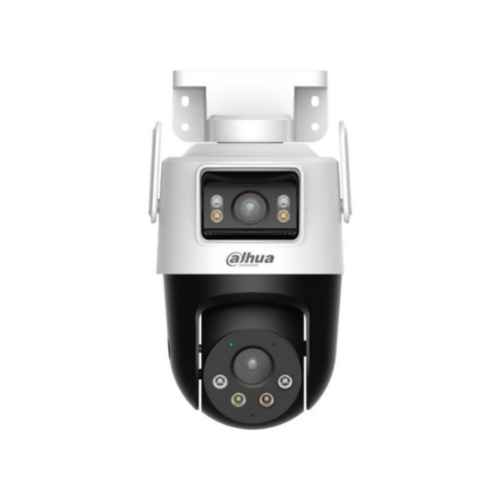

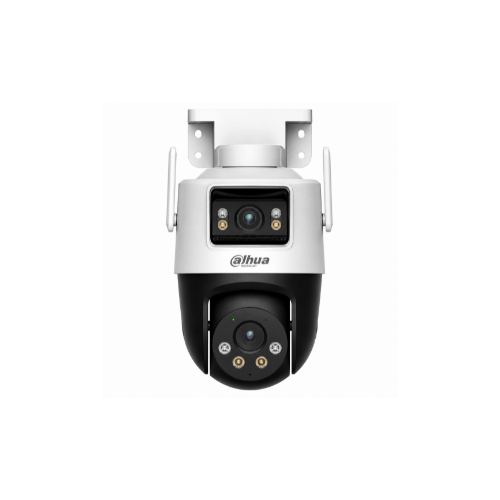

| Model | DH-IPC-P5D-5F-PV (PICOODUAL10MP) |
| Product Type | 10MP Outdoor Wi-Fi Dual-Lens Pan & Tilt Network Camera |
| Series | Dahua Picoo Dual Series |
| Total Resolution | 10MP (5MP + 5MP) |
| Fixed Lens Sensor | 1/3-inch CMOS |
| PT Lens Sensor | 1/3-inch CMOS |
| Fixed Lens Resolution | 2880 × 1620 |
| PT Lens Resolution | 2880 × 1620 |
| Fixed Lens | 2.8mm Fixed-Focal |
| PT Lens | 6mm Fixed-Focal |
| Fixed Lens FOV | H: 95° / V: 53° / D: 110° |
| PT Lens FOV | H: 49° / V: 26° / D: 57° |
| PT Pan Range | 0°–352° |
| PT Tilt Range | 0°–90° |
| Fixed Lens IR Distance | Up to 30m |
| Fixed Lens Warm Light | Up to 20m |
| PT Lens IR Distance | Up to 50m |
| PT Lens Warm Light | Up to 40m |
| Human Detection | Supported |
| Vehicle Detection | Supported |
| Automatic Tracking | Supported |
| Video Compression | H.265 |
| Main Stream | 2880 × 1620 @ up to 15fps |
| Sub Stream | 640 × 360 @ up to 15fps |
| WDR | DWDR |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Two-Way Audio | Supported |
| Network Port | RJ-45 10/100 Base-T |
| Wi-Fi Standard | IEEE 802.11b/g/n/ax |
| Wi-Fi Frequency | 2.4GHz |
| Bluetooth Pairing | Supported |
| Storage | MicroSD up to 256GB |
| Management Software | DMSS |
| Power Supply | 12V DC |
| Basic Power Consumption | 2.6W |
| Maximum Power Consumption | 10.6W |
| Operating Temperature | -20°C to +50°C |
| Protection | IP66 |
| Dimensions | 159.4 × 119.1 × 210mm |
| Net Weight | 585g |
