Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |

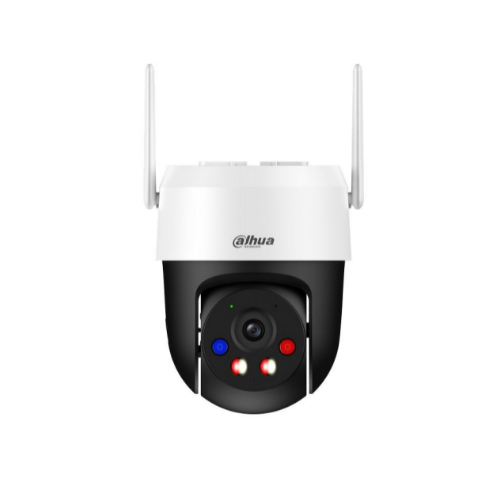

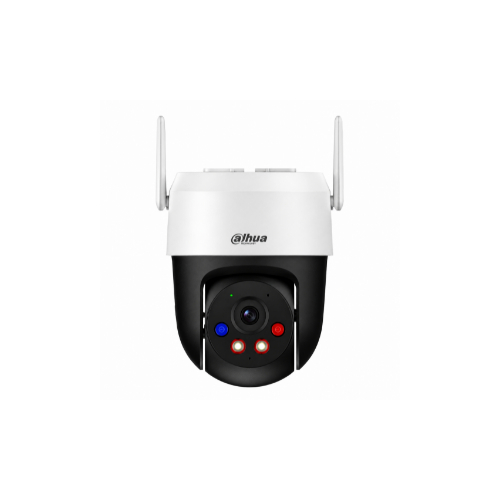

| Model | DH-SD-P3AE-PV-0400B (PICOA23MP) |
| Product Type | 3MP Wireless Active Deterrence PT Network Camera |
| Image Sensor | 1/2.8-inch CMOS |
| Effective Pixels | 2304 × 1296 |
| Resolution | 3MP |
| Electronic Shutter | Auto / Manual, 1s–1/100,000s |
| Lens Type | Fixed-Focal |
| Focal Length | 4.0mm |
| Maximum Aperture | F2.0 |
| Horizontal Field of View | 86.8° |
| Vertical Field of View | 47.1° |
| Diagonal Field of View | 102.2° |
| Close Focus Distance | 0.6m |
| Pan Range | 0°–345° |
| Tilt Range | 0°–80° |
| Presets | Up to 300 |
| IR Illumination Distance | Up to 30m |
| Warm Light Distance | Up to 30m |
| Illuminators | 2 × IR LED + 2 × Warm Light |
| Smart Dual Light | Supported |
| Day/Night | Auto ICR / Color / B&W |
| Video Compression | Smart H.265+ / H.265 / Smart H.264+ / H.264 / H.264B / MJPEG |
| Main Stream | 2304 × 1296 @ 1–25/30fps |
| Sub Stream | D1 / VGA / CIF @ 1–25/30fps |
| Video Bit Rate | H.264: 88Kbps–8192Kbps; H.265: 35Kbps–8192Kbps |
| WDR | DWDR |
| Motion Detection | Yes |
| Human Detection | Yes |
| SMD | SMD 3.0 |
| IVS | Tripwire / Intrusion |
| Active Deterrence | Supported |
| Light Warning | Warm Light Warning / Flash 5–30s |
| Sound Warning | 1 Built-in Sound + Up to 10 Custom Sounds |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Two-Way Talk | Supported |
| Audio Compression | PCM / G.711A / G.711Mu / G.726 |
| Network Port | RJ-45 10/100 Base-T |
| Wi-Fi Standard | IEEE 802.11b/g/n |
| Wi-Fi Frequency | 2.4GHz |
| Storage | MicroSD up to 256GB / FTP |
| Power Supply | 12V DC, 1A ±10% |
| Power Consumption | Maximum approximately 12W with warm light and active deterrence |
| Operating Temperature | -30°C to +55°C |
| Operating Humidity | ≤95% RH |
| Housing Material | Plastic |
| Dimensions | 140.5mm × Ø111mm |
| Net Weight | 0.5kg |
