Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |

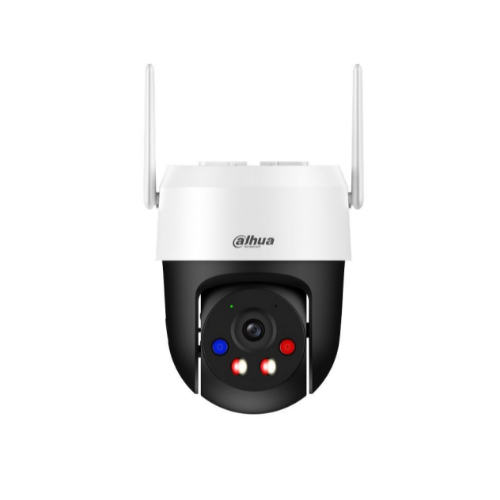

| Model | DH-SD-P5AE-PV-0400B (PICOA25MP) |
| Product Type | 5MP Wireless Active Deterrence PT Network Camera |
| Image Sensor | 1/2.8-inch CMOS |
| Effective Pixels | 2560 × 1920 |
| Resolution | 5MP |
| Electronic Shutter | 1s–1/100,000s |
| Lens Type | Fixed-Focal |
| Focal Length | 4.0mm |
| Maximum Aperture | F1.6 |
| Horizontal Field of View | 80.4° |
| Vertical Field of View | 58.1° |
| Diagonal Field of View | 104.8° |
| Close Focus Distance | 0.3m |
| Pan Range | 0°–345° |
| Tilt Range | 0°–80° |
| Presets | Up to 300 |
| IR Illumination Distance | Up to 30m |
| Warm Light Distance | Up to 30m |
| Illuminators | 2 IR Lights + 2 Warm Lights |
| Smart Dual Light | Supported |
| Day/Night | Auto ICR / Color / B&W |
| Video Compression | Smart H.265+ / H.265 / Smart H.264+ / H.264B / H.264M / H.264H / MJPEG |
| Main Stream | 5MP / 4MP / 3MP / 1080p / 1.3MP / 720p @ 1–25/30fps |
| Sub Stream | D1 / VGA / CIF @ 1–25/30fps |
| Video Bit Rate | H.264: 104Kbps–8192Kbps; H.265: 41Kbps–8192Kbps |
| WDR | DWDR |
| Image Rotation | 180° |
| Human Detection | Yes |
| SMD | SMD 3.0 |
| IVS | Tripwire / Intrusion / Linkage Tracking |
| Active Deterrence | Supported |
| Light Warning | Warm Light Warning; Flash Duration 5–30s |
| Sound Warning | 1 Built-in Sound + Up to 10 Custom Sounds |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Two-Way Talk | Supported |
| Audio Compression | PCM / G.711A / G.711Mu / G.726 |
| Network Port | RJ-45 10/100 Base-T |
| Wi-Fi Standard | IEEE 802.11b/g/n |
| Wi-Fi Frequency | 2.4GHz |
| Storage | MicroSD up to 256GB / FTP |
| Management Software | SmartPSS / DMSS / ConfigTool / NVR |
| Mobile Client | iOS / Android |
| Power Supply | 12V DC, 1A ±10% |
| Operating Temperature | -30°C to +55°C |
| Operating Humidity | ≤95% |
| Dimensions | 140.5mm × Ø111mm |
| Net Weight | 0.5kg |
