Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |

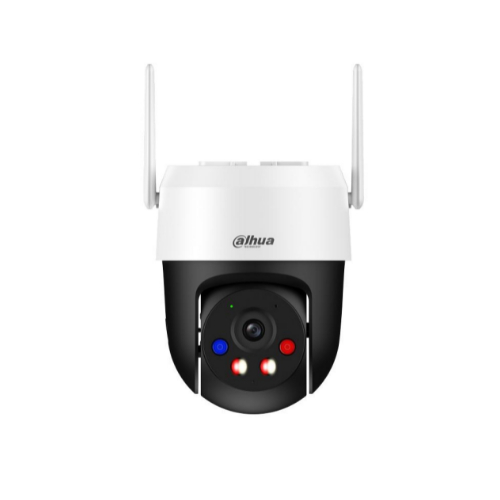

| Model | DH-SD2A500HB-GN-AW-PV-S2 |
| Product Type | 5MP Full-Color Network PT Camera |
| Series | Dahua Lite Series |
| Image Sensor | 1/2.8-inch CMOS |
| Resolution | 5MP |
| Maximum Resolution | 2560 × 1920 |
| ROM | 128MB |
| RAM | 128MB |
| Lens Type | Fixed-Focal |
| Focal Length | 4.0mm |
| Maximum Aperture | F1.6 |
| Horizontal Field of View | 80.4° |
| Vertical Field of View | 58.1° |
| Diagonal Field of View | 104.8° |
| Close Focus Distance | 0.3m |
| Pan Range | 0°–345° |
| Tilt Range | 0°–80° |
| Preset Positions | 300 |
| Minimum Illumination | Color: 0.005 lux @ F1.6; B/W: 0.0005 lux @ F1.6 |
| IR Illumination Distance | Up to 30m |
| White Light Distance | Up to 30m |
| Illuminators | 2 IR Lights + 2 White Lights |
| Smart Dual Illuminators | Supported |
| Human Detection | Supported |
| IVS | Tripwire / Intrusion Detection |
| Active Deterrence | Sound & White-Light Alarm |
| Light Warning | White Light, 5–30s Flash Duration |
| Sound Warning | Customizable, 10s / 20s / 30s |
| Video Compression | Smart H.265+ / H.265 / Smart H.264+ / H.264 / H.264B / MJPEG |
| Streaming | 2 Streams |
| Main Stream | 5MP @ 1–20fps; 4MP / 1080P / 1.3MP / 720P @ 1–25/30fps |
| Sub Stream | D1 / CIF @ 1–25/30fps |
| WDR | DWDR |
| BLC / HLC | Supported |
| Noise Reduction | 2D NR / 3D NR |
| Motion Detection | Supported |
| Image Rotation | 180° |
| Audio | Built-in Microphone & Speaker |
| Two-Way Audio | Supported |
| Network Port | RJ-45 10/100 Base-T |
| Wi-Fi | Supported |
| Wi-Fi Standard | 802.11b/g/n |
| Wi-Fi Frequency | 2.4GHz |
| Wi-Fi Transmission Rate | Up to 150Mbps |
| Storage | MicroSD up to 512GB / FTP |
| ONVIF | Profile S & T |
| P2P | Supported |
| Mobile Client | iOS / Android |
| Management Software | DMSS / SmartPSS / ConfigTool / NVR |
| Power Supply | 12V DC, 1.5A ±10% |
| Power Consumption | Basic: 3.5W / Maximum: 11W |
| Operating Temperature | -30°C to +55°C |
| Operating Humidity | ≤95% |
| Protection | IP66 |
| Lightning Protection | TVS 2000V |
| Dimensions | 140.5mm × Φ111mm |
| Net Weight | 0.5kg |
