| Brand |
Dahua |
| Model |

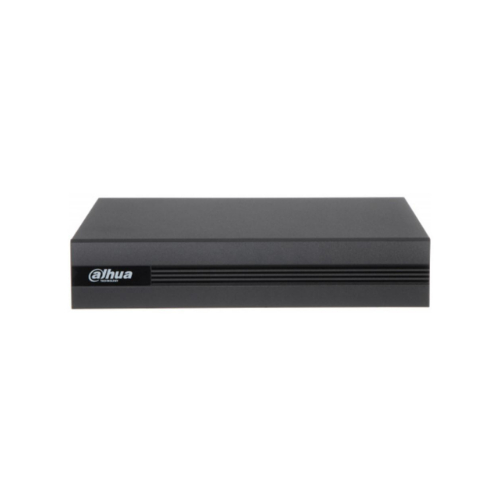

DH-XVR1B04H-I |
| Product Type |
Penta-Brid XVR / Digital Video Recorder |
| Series |
Dahua Cooper-I / WizSense |
| Analog Channels |
4 Channels |
| Analog Video Input |
4 × BNC |
| Supported Analog Formats |
HDCVI / AHD / TVI / CVBS |
| IP Camera Input |
Up to 6 channels |
| Maximum IP Camera Resolution |
Up to 6MP per channel |
| Incoming Bandwidth |
32 Mbps |
| Recording Bandwidth |
32 Mbps |
| Outgoing Bandwidth |
32 Mbps |
| HDCVI Input Resolution |
5MP / 4MP / 1080P / 720P |
| Recording Resolution |
5M-N / 4M-N / 1080P / 1080N / 720P / 960H / D1 / CIF |
| Main Stream Recording |
5M-N: 1–10fps; 4M-N/1080P: 1–15fps; 1080N/720P/960H/D1/CIF: 1–25/30fps |
| Sub Stream |
D1/CIF: 1–15fps |
| Video Compression |
AI Coding / H.265+ / H.265 / H.264+ / H.264 |
| Dual Stream |
Yes |
| SMD Plus |
4 Channels, Human and Vehicle Detection |
| AI Coding |
Full-Channel AI Coding |
| Audio Input |
1 × RCA + 4-Channel Coaxial Audio |
| Audio Output |
1 × RCA |
| Two-Way Talk |
Yes, using audio input/output |
| HDMI Output |
1 × HDMI |
| VGA Output |
1 × VGA |
| HDMI/VGA Resolution |
1920 × 1080 / 1280 × 1024 / 1280 × 720 |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Network Protocols |
HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, P2P and more |
| Mobile Access |
iOS / Android |
| Interoperability |
ONVIF 22.12 Profile T / Profile S / Profile G; CGI; SDK |
| Playback |
1/4 Channel Playback |
| Recording Modes |
General / Alarm / Motion Detection |
| Backup |
USB Device / Network |
| HDD Interface |
1 × SATA |
| Maximum HDD Capacity |
Up to 16TB |
| USB Ports |
2 × USB 2.0 |
| RS485 |
1 × RS485 for PTZ Control |
| Power Supply |
12V DC, 1.5A |
| Power Consumption |
Less than 4W without HDD |
| Operating Temperature |
-10°C to +45°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Dimensions |
197.0 × 203.1 × 41.5mm |
| Net Weight |
0.55kg |
| Gross Weight |
1.02kg |
| Installation |
Desktop |
