| Brand |
Dahua |
| Model |

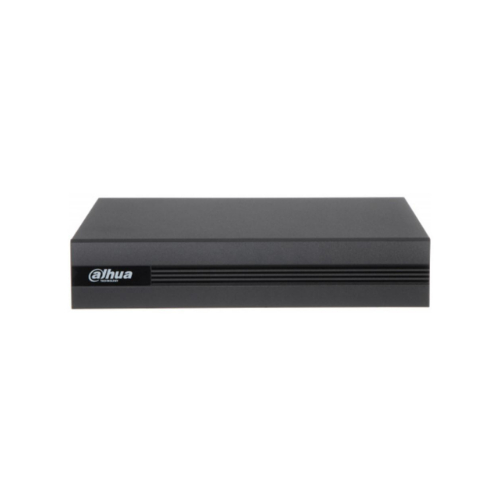

DH-XVR1B08H-I |
| Product Type |
Penta-Brid XVR / Digital Video Recorder |
| Series |
Dahua Cooper-I / WizSense |
| Analog Channels |
8 Channels |
| Analog Video Input |
8 × BNC |
| Supported Analog Formats |
HDCVI / AHD / TVI / CVBS Auto-Detect |
| IP Camera Input |
Up to 12 Channels |
| Maximum IP Camera Resolution |
Up to 6MP per channel |
| Incoming Bandwidth |
64 Mbps |
| Recording Bandwidth |
64 Mbps |
| Outgoing Bandwidth |
64 Mbps |
| HDCVI Input Resolution |
5MP / 4MP / 1080P / 720P |
| Recording Resolution |
5MP-N / 4MP-N / 1080P / 1080N / 720P / 960H / D1 / CIF |
| Encoding Capacity |
5MP Mode: 4CH 5MP @ 1–6fps; 5MP-N Mode: 5MP-N @ 1–12fps; 4MP-N/1080P @ 1–15fps; 1080N/720P/960H/D1/CIF @ 1–25/30fps |
| Sub Stream |
D1/CIF @ 1–15fps |
| Video Compression |
AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Dual Stream |
Yes |
| SMD Plus |
8 Channels, Human and Vehicle Detection |
| AI Coding |
8 Channels |
| Video Bit Rate |
32 Kbps–6144 Kbps |
| Audio Input |
1 × RCA + 8-Channel BNC Coaxial Audio |
| Audio Output |
1 × RCA |
| Two-Way Talk |
Yes |
| HDMI Output |
1 × HDMI |
| VGA Output |
1 × VGA |
| HDMI/VGA Resolution |
1920 × 1080 / 1280 × 1024 / 1280 × 720 |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Network Protocols |
HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P and more |
| Mobile Access |
iOS / Android |
| Interoperability |
ONVIF 22.12 Profile T / Profile S / Profile G; CGI; SDK |
| Browser Support |
Chrome / Edge / Firefox / Safari / Internet Explorer |
| Playback |
1 / 4 / 9 Channel Playback |
| Recording Modes |
General / Alarm / Motion Detection |
| Backup |
USB Device / Network |
| HDD Interface |
1 × SATA |
| Maximum HDD Capacity |
Up to 16TB |
| USB Ports |
2 × USB 2.0, Rear |
| Network Port |
1 × 10/100 Mbps RJ45 |
| Power Supply |
12V DC, 1.5A |
| Power Consumption |
Less than 7W without HDD |
| Operating Temperature |
-10°C to +45°C |
| Storage Temperature |
-20°C to +60°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Dimensions |
197.0 × 202.9 × 41.5mm |
| Net Weight |
0.57kg |
| Gross Weight |
1.05kg |
| Installation |
Desktop |
