| Brand |
Dahua |
| Model |

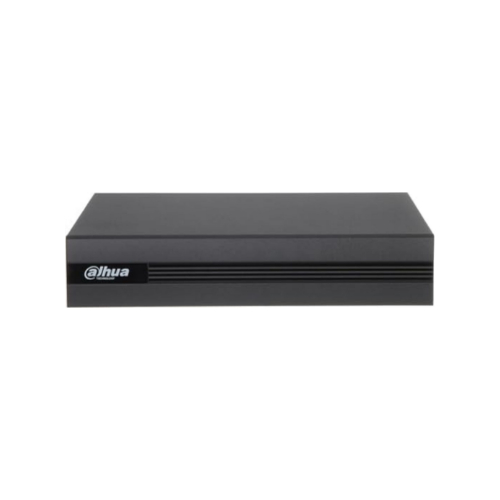

DH-XVR1B08H-I(1T) |
| Product Type |
Penta-Brid XVR / Digital Video Recorder |
| Series |
Dahua Cooper-I / WizSense |
| Analog Video Channels |
8 Channels |
| Analog Video Input |
8 × BNC |
| Supported Analog Formats |
HDCVI / AHD / TVI / CVBS Auto-Detect |
| IP Camera Input |
Up to 12 Channels |
| Maximum IP Camera Resolution |
Up to 6MP per channel |
| Incoming Bandwidth |
64 Mbps |
| Recording Bandwidth |
64 Mbps |
| Outgoing Bandwidth |
64 Mbps |
| HDCVI Resolution |
5MP / 4MP / 1080p / 720p |
| TVI Resolution |
5MP / 4MP / 1080p / 720p |
| AHD Resolution |
5MP / 4MP / 1080p / 720p |
| CVBS |
PAL / NTSC |
| Main Stream Recording |
5MP-N @ 1–10fps; 4MP-N / 1080p @ 1–15fps; 1080N / 720p / 960H / D1 / CIF @ 1–25/30fps |
| Sub Stream |
D1 / CIF @ 1–15fps |
| Video Compression |
AI Coding / H.265+ / H.265 / H.264+ / H.264 |
| Dual Stream |
Yes |
| SMD Plus |
8 Channels; Human and Motor Vehicle Detection |
| AI Coding |
8 Channels |
| Video Bit Rate |
32 Kbps–6144 Kbps |
| Audio Input |
1 × RCA + 8-Channel BNC Coaxial Audio |
| Audio Output |
1 × RCA |
| Two-Way Talk |
Yes |
| HDMI Output |
1 × HDMI |
| VGA Output |
1 × VGA |
| HDMI / VGA Resolution |
1920 × 1080 / 1280 × 1024 / 1280 × 720 |
| Multi-Screen Display |
1 / 4 / 8 / 9; up to 16 with IP extension mode |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Network Protocols |
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS and P2P |
| Mobile Access |
iOS / Android |
| Interoperability |
ONVIF 21.12 / CGI Conformant |
| Browser Support |
Chrome / IE9 or later / Firefox |
| Recording Modes |
General / Motion Detection / Alarm / POS |
| Playback |
1 / 4 / 8 / 9 Channel Playback |
| Backup |
USB Device / Network |
| Storage |
1 × 1TB SSD Pre-installed |
| SSD Upgrade |
Replaceable with 256GB or 512GB SSD |
| Default Recording Storage |
Approximately 11 days with 1TB SSD under default settings |
| USB Ports |
2 × USB 2.0 |
| Power Supply |
12V DC, 1.5A |
| Power Consumption |
Less than 7W with SSD |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
0%–90% RH |
| Dimensions |
198.3 × 203.4 × 41.5mm |
| Net Weight |
0.57kg |
| Gross Weight |
1.05kg |
| Installation |
Desktop |
| Certifications |
FCC Part 15 Subpart B; CE |
