| Brand |
Dahua |
| Model |

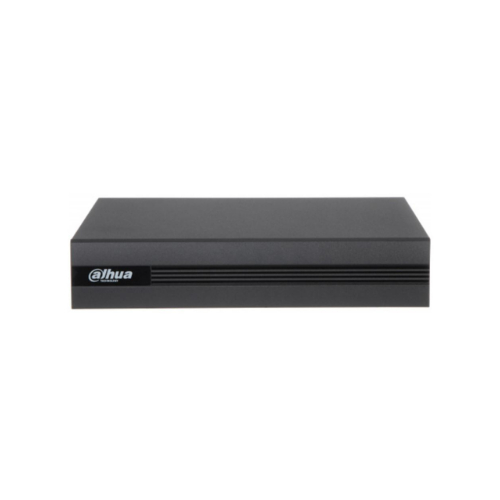

DH-XVR1B16H-I |
| Product Type |
Penta-Brid XVR / Digital Video Recorder |
| Series |
Dahua Cooper-I / WizSense |
| Analog Video Channels |
16 Channels |
| Analog Video Input |
16 × BNC |
| Supported Analog Formats |
HDCVI / AHD / TVI / CVBS Auto-Detect |
| IP Camera Input |
Up to 24 Channels |
| Maximum IP Camera Resolution |
Up to 6MP per channel |
| Incoming Bandwidth |
128 Mbps |
| Recording Bandwidth |
128 Mbps |
| Outgoing Bandwidth |
128 Mbps |
| HDCVI Input Resolution |
5MP / 4MP / 1080P / 720P |
| Camera Input |
CVI, TVI and AHD up to 5MP; 4MP; 1080P; 720P depending on format |
| Encoding Capacity |
5MP Mode: 4CH 5MP @ 1–6fps; remaining channels 5M-N @ 1–12fps. 5M-N Mode: 5M-N @ 1–12fps; 4M-N/1080P @ 1–15fps; 1080N/720P/960H/D1/CIF @ 1–25/30fps |
| Sub Stream |
D1 / CIF @ 1–15fps |
| Video Compression |
AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Dual Stream |
Yes |
| SMD Plus |
16 Channels by Recorder; Human and Motor Vehicle Detection |
| SMD Plus by Camera |
Up to 24 Channels |
| AI Coding |
16 Channels |
| Video Bit Rate |
32 Kbps–6144 Kbps per channel |
| Audio Input |
1 × RCA + 16-Channel BNC Coaxial Audio |
| Audio Output |
1 × RCA |
| Two-Way Talk |
Yes |
| HDMI Output |
1 × HDMI, up to 3840 × 2160 |
| VGA Output |
1 × VGA, up to 1920 × 1080 |
| Multi-Screen Display |
1 / 4 / 8 / 9 / 16; up to 25 with IP extension mode |
| Network Interface |
1 × RJ45 10/100/1000 Mbps Ethernet |
| Network Protocols |
HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P and more |
| Mobile Access |
iOS / Android |
| Interoperability |
ONVIF Profile T / Profile S / Profile G; CGI; SDK |
| Browser Support |
Chrome / Edge / Firefox / Safari / Internet Explorer |
| Recording Modes |
General / Alarm / Motion Detection |
| Playback |
1 / 4 / 9 / 16 Channel Playback |
| Backup |
USB Device / Network |
| HDD Interface |
1 × SATA |
| Maximum HDD Capacity |
Up to 16TB |
| USB Ports |
2 × USB 2.0 |
| Network Port |
1 × Gigabit RJ45 Ethernet |
| Power Supply |
12V DC, 2A |
| Power Consumption |
Less than 12W without HDD |
| Operating Temperature |
-10°C to +45°C |
| Storage Temperature |
-20°C to +60°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Dimensions |
260.0 × 231.4 × 47.6mm |
| Net Weight |
0.93kg |
| Gross Weight |
1.43kg |
| Installation |
Desktop |
