Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |

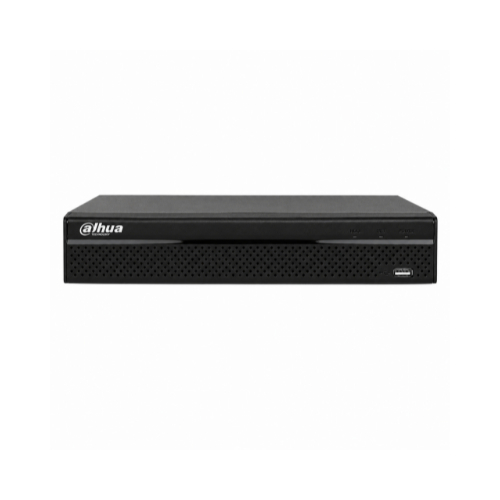

| Model | DHI-NVR1104HS-P-S3/H |
| Series | NVR1000-S3/H Lite Series |
| Product Type | PoE Network Video Recorder |
| IP Camera Channels | 4 Channels |
| Maximum Camera Resolution | Up to 8MP |
| Incoming Bandwidth | 80 Mbps |
| Recording Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Maximum Decoding | 1 × 8MP / 1 × 5MP @ 25fps; 2 × 4MP / 3MP @ 25fps; 4 × 1080P @ 25fps |
| PoE Ports | 4 × PoE RJ45 |
| PoE Standard | IEEE 802.3af / 802.3at |
| Total PoE Power | 36W |
| Maximum PoE Power Per Port | 25.5W |
| Network Port | 1 × RJ45 10/100 Mbps |
| HDD Interface | 1 × SATA 2.0 |
| Maximum HDD Capacity | Up to 8TB |
| HDMI Output | 1 × HDMI, up to 1080P |
| VGA Output | 1 × VGA |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| Two-Way Audio | Supported |
| USB Ports | 2 × USB 2.0 |
| ONVIF | Profile S / G / T |
| RTSP | Supported |
| Recording Modes | Manual / Alarm / Motion Detection / Scheduled |
| Playback Channels | 4 Channels |
| P2P Remote Access | Supported |
| Mobile Support | Android / iOS |
| Network Protocols | HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / RTSP / UDP / NTP / DHCP / DNS / P2P |
| Operating System | Embedded Linux |
| Power Supply | 48V DC, 1.25A / 53V DC, 1.22A |
| Power Consumption | ≤10W without HDD |
| Operating Temperature | -10°C to +45°C |
| Operating Humidity | 10%–93% RH |
| Installation | Desktop |
| Dimensions | 260 × 225 × 47.6mm |
| Net Weight | 0.84kg |
| Certification | CE / FCC |
