Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dahua |

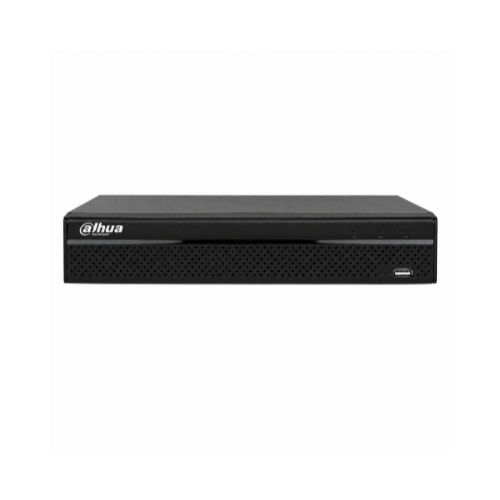

| Model | DHI-NVR1108HS-8P-S3/H |
| Series | NVR1000-S3/H Lite Series |
| Product Type | PoE Network Video Recorder |
| IP Camera Channels | 8 Channels |
| Maximum Camera Resolution | Up to 8MP |
| Incoming Bandwidth | 80 Mbps |
| Storage Bandwidth | 80 Mbps |
| Forwarding Bandwidth | 60 Mbps |
| Recording Resolution | 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF |
| Video Compression | Smart H.265+ / Smart H.264+ / H.265 / H.264 |
| Decoding Capability | 1 × 8MP@30fps / 1 × 5MP@30fps / 2 × 4MP@30fps / 2 × 3MP@30fps / 4 × 1080P@30fps / 8 × 720P@30fps |
| PoE Ports | 8 × PoE RJ45 |
| PoE Standard | IEEE 802.3af / 802.3at |
| Total PoE Power | 72W |
| Maximum PoE Power Per Port | 25.5W |
| Network Port | 1 × RJ45 10/100 Mbps |
| HDD Interface | 1 × SATA 2.0 |
| Maximum HDD Capacity | Up to 8TB for one HDD |
| HDMI Output | 1 × HDMI, maximum 1080P |
| VGA Output | 1 × VGA, maximum 1080P |
| Multi-Screen Display | 1 / 4 / 8 / 9 |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| Audio Compression | PCM / G.711A / G.711U / G.726 / AAC |
| USB Ports | 2 × USB 2.0 — 1 Front / 1 Rear |
| ONVIF | Profile T / S / G |
| Third-Party Camera Access | ONVIF / RTSP |
| Network Protocols | HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / RTSP / UDP / NTP / DHCP / DNS / P2P |
| Playback | Up to 8 Channels |
| Record Modes | Manual / Alarm / Motion Detection / Scheduled |
| P2P Remote Access | Supported |
| Mobile Access | iOS / Android |
| Operating System | Embedded Linux |
| Power Supply | DC48V / 53V, 2A / 1.8A |
| NVR Power Consumption | ≤10W without HDD |
| PoE Total Output Power | 72W |
| Operating Temperature | -10°C to +45°C |
| Operating Humidity | 10%–93% |
| Installation | Desktop Mounting |
| Dimensions | 260 × 225 × 47.6mm |
| Net Weight | 0.84kg |
| Color | Black |
| Certification | CE / FCC |
