| Brand |
Dahua |
| Model |
DHI-XVR5104HS-I3 |
| Product Type |

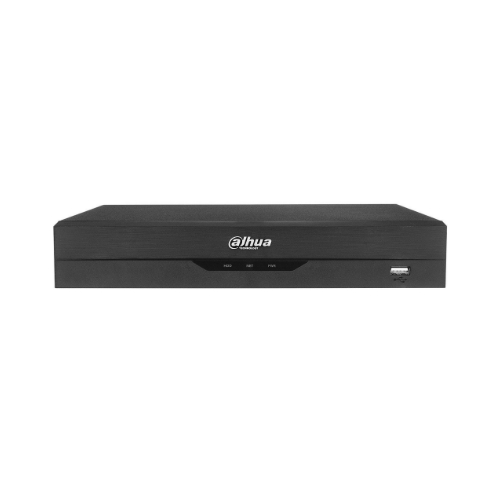

4-Channel Penta-brid WizSense XVR Digital Video Recorder |
| Series |
Dahua WizSense XVR5000-I3 Series |
| Analog Channels |
4 BNC Channels |
| Analog Video Input |
HDCVI / AHD / TVI / CVBS, Auto-detect |
| IP Camera Channels |
Up to 6 Channels |
| Maximum IP Camera Resolution |
Up to 6MP per channel |
| Incoming Bandwidth |
32 Mbps |
| Recording Bandwidth |
32 Mbps |
| Outgoing Bandwidth |
32 Mbps |
| Recording Resolution |
5M-N, 4M-N, 1080p, 1080N, 720p, 960H, D1, CIF |
| 5MP Recording |
5M-N up to 10fps per channel |
| 4MP / 1080p Recording |
Up to 15fps per channel |
| Sub-stream |
D1 / CIF up to 15fps |
| Dual Stream |
Yes |
| Video Compression |
AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Audio Compression |
G.711a / G.711u / PCM |
| SMD Plus |
4 Channels by Recorder; 6 Channels by Camera |
| Human & Vehicle Detection |
Yes |
| Perimeter Protection |
Up to 4 Channels General Mode / 2 Channels Advanced Mode |
| IVS Rules |
Tripwire / Intrusion Detection |
| Face Detection |
1 Channel, up to 8 face images/s |
| Face Recognition |
1 Channel |
| Face Database |
Up to 10 databases with up to 10,000 face images |
| AI Coding |
Yes, up to 4 channels by recorder |
| Video Quality Analytics |
Up to 4 Channels |
| Audio Input |
1 × RCA + 4 × BNC Coaxial Audio |
| Audio Output |
1 × RCA |
| Two-Way Talk |
Yes |
| HDD Interface |
1 × SATA |
| Maximum HDD Capacity |
Up to 16TB |
| USB |
2 × USB 2.0 |
| HDMI Output |
1 × HDMI, up to 1920 × 1080 |
| VGA Output |
1 × VGA, up to 1920 × 1080 |
| Network Port |
1 × RJ-45 10/100 Mbps Ethernet |
| RS-485 |
1 Port, PTZ Control |
| Network Protocols |
HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / RTSP / UDP / NTP / DHCP / DNS / SMTP / UPnP / FTP / DDNS / SNMP / P2P |
| Mobile Access |
iOS / Android |
| ONVIF |
ONVIF 23.12, Profile T / S / G |
| Browser Support |
Chrome / Edge / Firefox / Safari / IE |
| Recording Modes |
General / Alarm / Motion Detection / Intelligent / POS |
| Playback |
1/4 Channel Playback, Smart Playback |
| Backup |
USB Device / Network |
| POS Function |
Yes |
| IoT Function |
Yes |
| Power Supply |
12V DC, 1.5A |
| Power Consumption |
Less than 5W without HDD |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Installation |
Desktop |
| Dimensions |
260.0 × 237.8 × 47.6mm |
| Net Weight |
0.84kg |
| Gross Weight |
1.37kg |
