| Brand |
Dahua |
| Model |
DH-XVR5108HS-4KL-I3 |
| Product Type |

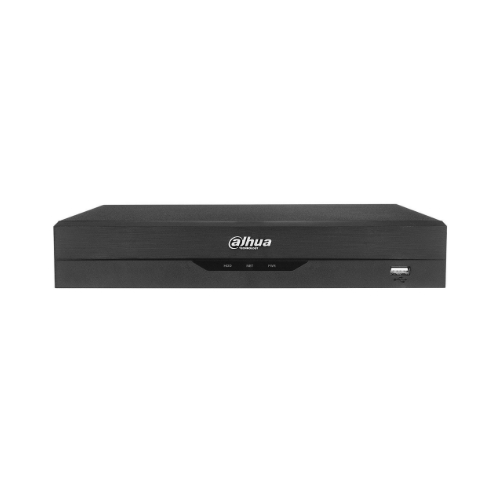

8-Channel Penta-brid 4K/5MP WizSense XVR Digital Video Recorder |
| Series |
Dahua WizSense XVR5000-4KL-I3 Series |
| Analog Video Input |
8 × BNC |
| Analog Video Standards |
HDCVI / AHD / TVI / CVBS Auto-detect |
| IP Camera Input |
Up to 16 Channels |
| Maximum IP Camera Resolution |
Up to 8MP |
| Incoming Bandwidth |
128 Mbps |
| Recording Bandwidth |
128 Mbps |
| Outgoing Bandwidth |
128 Mbps |
| Maximum Recording Resolution |
4K / 8MP |
| HDCVI Recording |
4K@25/30fps; 4K@12.5/15fps; 6MP@20fps; 5MP@25fps; 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps |
| TVI Recording |
4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps |
| AHD Recording |
4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps |
| Sub-stream |
960H@1–15fps; D1/CIF@1–25/30fps |
| Video Compression |
AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Dual Stream |
Yes |
| SMD Plus |
8 Channels by Recorder / 16 Channels by Camera |
| Human & Vehicle Detection |
Yes |
| Perimeter Protection |
8 Channels General Mode / 2 Channels Advanced Mode |
| IVS Rules |
Tripwire / Intrusion Detection, up to 10 rules per channel |
| Face Detection |
2 Channels, up to 12 face images/s per channel |
| Face Recognition |
2 Channels |
| Face Database |
Up to 10 databases with 20,000 face images |
| QuickPick 2.0 |
2 Channels |
| Privacy Protection |
1 Channel |
| AI Coding |
8 Channels |
| AI Video Quality Analytics |
8 Channels |
| Scene Changing Detection |
1 Channel |
| Audio Input |
1 × RCA + 8 × BNC Coaxial Audio |
| Audio Output |
1 × RCA |
| Two-Way Talk |
Yes |
| HDD Interface |
1 × SATA |
| Maximum HDD Capacity |
Up to 16TB |
| USB Ports |
2 × USB: 1 Front USB 2.0 + 1 Rear USB 3.0 |
| HDMI Output |
1 × HDMI, up to 3840 × 2160 |
| VGA Output |
1 × VGA, up to 1920 × 1080 |
| Network Port |
1 × RJ-45 10/100/1000 Mbps Ethernet |
| RS-485 |
1 Port |
| Network Protocols |
HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / RTSP / UDP / NTP / DHCP / DNS / SMTP / UPnP / FTP / DDNS / SNMP / P2P |
| Mobile Access |
iOS / Android |
| ONVIF |
ONVIF 23.12, Profile T / S / G |
| Recording Modes |
General / Alarm / Motion Detection / Intelligent / POS |
| Playback |
1 / 4 / 9 Channels |
| Backup |
USB Device / Network |
| POS Function |
Yes |
| IoT Function |
Supported |
| Power Supply |
12V DC, 2A |
| Power Consumption |
Less than 10W without HDD |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Installation |
Desktop |
| Dimensions |
260.0 × 237.8 × 47.6mm |
| Net Weight |
1.00kg |
| Gross Weight |
1.40kg |
| Certifications |
CE / FCC |
