| Brand |
Dahua |
| Model |
DH-XVR5108HS-5M-I3 |
| Product Type |

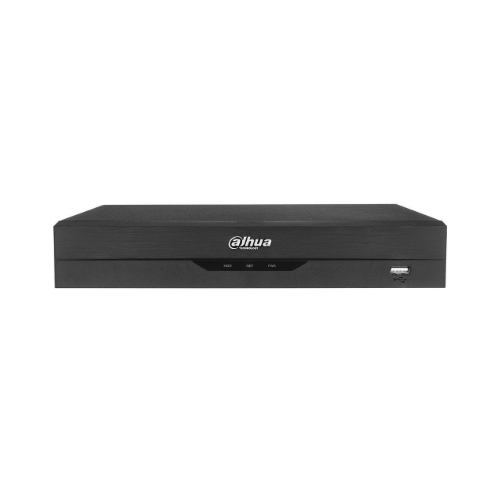

8-Channel Penta-brid 5MP WizSense XVR Digital Video Recorder |
| Series |
Dahua WizSense XVR5000-I3 Series |
| Analog Camera Input |
8 × BNC |
| Video Standards |
HDCVI / AHD / TVI / CVBS Auto-detect |
| IP Camera Input |
Up to 12 Channels |
| Maximum IP Camera Resolution |
Up to 6MP |
| Incoming Bandwidth |
64 Mbps |
| Recording Bandwidth |
64 Mbps |
| Outgoing Bandwidth |
64 Mbps |
| Maximum Encoding Capability |
5MP@12fps / 1080p@25fps |
| Recording Resolution |
5MP / 5MP-N / 4MP-N / 1080P / 1080N / 720P / 960H / D1 / CIF |
| Dual Stream |
Yes |
| Video Compression |
AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| SMD Plus |
8 Channels by Recorder / 12 Channels by Camera |
| Human & Vehicle Detection |
Yes |
| Perimeter Protection |
4 Channels General Mode / 2 Channels Advanced Mode |
| IVS Rules |
Up to 10 rules per channel |
| Face Detection |
2 Channels, up to 8 face images/s per channel |
| Face Recognition |
2 Channels |
| Face Database |
Up to 10 databases with up to 10,000 face images |
| QuickPick 2.0 |
2 Channels |
| AI Coding |
8 Channels |
| AI Video Quality Analytics |
8 Channels |
| Scene Changing Detection |
1 Channel |
| Irregular Black Block Masking |
1 Channel |
| Audio Input |
1 × RCA + 8 × BNC Coaxial Audio |
| Audio Output |
1 × RCA |
| Two-Way Talk |
Supported |
| HDD Interface |
1 × SATA |
| Maximum HDD Capacity |
Up to 16TB |
| USB Ports |
2 × USB 2.0 — 1 Front + 1 Rear |
| HDMI Output |
1 × HDMI, up to 2560 × 1440 |
| VGA Output |
1 × VGA, up to 1920 × 1080 |
| Network Port |
1 × RJ-45 10/100 Mbps Ethernet |
| RS-485 |
1 Port |
| Mobile Access |
iOS / Android |
| Network Protocols |
HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / RTSP / UDP / NTP / DHCP / DNS / SMTP / UPnP / FTP / DDNS / SNMP / P2P |
| ONVIF |
ONVIF 24.06, Profile T / S / G |
| Recording Modes |
General / Alarm / Motion Detection / Intelligent / POS |
| Playback |
1 / 4 / 9 Channels |
| Backup |
USB Device / Network |
| POS Function |
Supported |
| Power Supply |
12V DC, 2A |
| Power Consumption |
Less than 7W without HDD |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Installation |
Desktop |
| Dimensions |
260.0 × 237.8 × 47.6mm |
| Net Weight |
1.17kg |
| Gross Weight |
1.48kg |
| Certifications |
CE-LVD / CE-EMC |
