| Brand |
Dahua |
| Model |

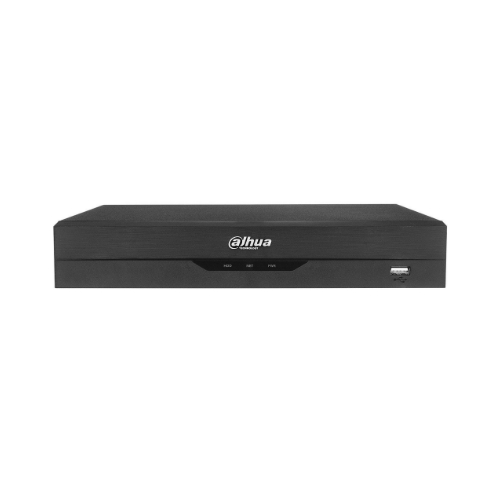

DH-XVR5116HS-5M-I3 |
| Product Type |
16-Channel Penta-brid 5MP WizSense XVR Digital Video Recorder |
| Operating System |
Embedded Linux |
| Analog Camera Input |
16 × BNC |
| Video Standards |
HDCVI / AHD / TVI / CVBS Auto-detect |
| IP Camera Input |
Up to 24 Channels |
| Default IP Channels |
8 IP Channels + up to 16 additional channels through IP extension |
| Maximum IP Camera Resolution |
Up to 6MP |
| Incoming Bandwidth |
128 Mbps |
| Recording Bandwidth |
128 Mbps |
| Outgoing Bandwidth |
128 Mbps |
| Maximum Encoding Capability |
5MP@25fps on selected channels / 5MP-N up to 25fps |
| Recording Resolution |
5MP / 5MP-N / 4MP-N / 1080P / 1080N / 720P / 960H / D1 / CIF |
| Dual Stream |
Yes |
| Video Compression |
AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| SMD Plus |
16 Channels by Recorder / 24 Channels by Camera |
| Human & Vehicle Detection |
Yes |
| Perimeter Protection |
4 Channels General Mode / 2 Channels Advanced Mode |
| IVS Rules |
Up to 10 rules per channel |
| Face Detection |
2 Channels, up to 12 face images/s per channel |
| Face Recognition |
2 Channels |
| Face Database |
Up to 10 databases with up to 10,000 face images |
| QuickPick 2.0 |
2 Channels |
| AI Video Quality Analytics |
3 Channels |
| Scene Changing Detection |
1 Channel |
| Irregular Black Block Masking |
1 Channel |
| Audio Input |
1 × RCA + 16 × BNC Coaxial Audio |
| Audio Output |
1 × RCA |
| Two-Way Talk |
Supported |
| HDD Interface |
1 × SATA |
| Maximum HDD Capacity |
Up to 16TB |
| Video Output |
1 × HDMI + 1 × VGA |
| HDMI Resolution |
Up to 3840 × 2160 |
| VGA Resolution |
Up to 1920 × 1080 |
| USB Ports |
USB ports for mouse, backup and peripheral devices |
| Network Port |
RJ-45 Ethernet |
| Mobile Access |
iOS / Android |
| Network Protocols |
HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / RTSP / UDP / NTP / DHCP / DNS / SMTP / UPnP / FTP / DDNS / SNMP / P2P |
| ONVIF |
ONVIF Profile T / S / G |
| Recording Modes |
General / Alarm / Motion Detection / Intelligent / POS |
| Playback |
1 / 4 / 9 / 16 Channels |
| Backup |
USB Device / Network |
| POS Function |
Supported |
| Power Supply |
12V DC |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Installation |
Desktop |
