| Brand |
Dahua |
| Model |
DH-XVR5232AN-4KL-I3 |
| Product Type |

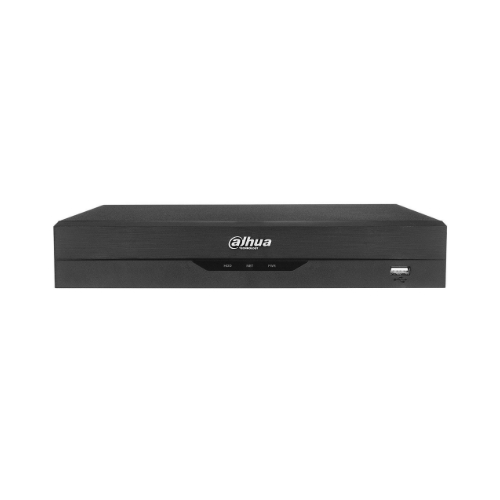

32-Channel Penta-brid 4K/5MP WizSense XVR Digital Video Recorder |
| Series |
Dahua WizSense XVR5000-4KL-I3 Series |
| Analog Camera Input |
32 × BNC |
| Analog Video Standards |
HDCVI / AHD / TVI / CVBS Auto-detect |
| IP Camera Input |
Up to 64 Channels |
| Maximum IP Camera Resolution |
Up to 12MP |
| Incoming Bandwidth |
256 Mbps |
| Recording Bandwidth |
256 Mbps |
| Outgoing Bandwidth |
256 Mbps |
| Maximum Encoding Capability |
4K@15fps / 5MP@25fps |
| Recording Resolution |
4K / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / 960H / D1 / CIF |
| Dual Stream |
Yes |
| Video Compression |
AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| SMD Plus |
32 Channels by Recorder / 64 Channels by Camera |
| Human & Vehicle Detection |
Yes |
| Perimeter Protection |
12 Channels General Mode / 6 Channels Advanced Mode |
| IVS Rules |
Tripwire / Intrusion Detection, up to 10 rules per channel |
| Face Detection |
6 Channels, up to 12 face images/s per channel |
| Face Recognition |
6 Channels |
| Face Database |
Up to 10 databases with up to 20,000 face images |
| QuickPick 2.0 |
6 Channels |
| AI Coding |
32 Channels |
| AI Video Quality Analytics |
32 Channels |
| Privacy Protection |
1 Channel |
| EPTZ |
1 Channel |
| Audio Input |
1 × RCA + 32 × BNC Coaxial Audio |
| Audio Output |
1 × RCA |
| Two-Way Talk |
Yes |
| HDD Interface |
2 × SATA |
| Maximum HDD Capacity |
Up to 16TB per HDD |
| USB Ports |
2 × USB — 1 Front USB 2.0 + 1 Rear USB 3.0 |
| HDMI Output |
1 × HDMI, up to 3840 × 2160 |
| VGA Output |
1 × VGA, up to 1920 × 1080 |
| CVBS Output |
1 Channel |
| Network Port |
1 × RJ-45 10/100/1000 Mbps Ethernet |
| RS-485 |
1 Port |
| Mobile Access |
iOS / Android |
| Network Protocols |
HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / RTSP / UDP / NTP / DHCP / DNS / SMTP / UPnP / FTP / DDNS / SNMP / P2P |
| ONVIF |
ONVIF 24.06, Profile T / S / G |
| Recording Modes |
General / Alarm / Motion Detection / Intelligent / POS |
| Playback |
1 / 4 / 9 / 16 Channels |
| Backup |
USB Device / Network |
| POS Function |
Supported |
| Power Supply |
12V DC, 5A |
| Power Consumption |
Less than 32W without HDD |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Installation |
Desktop |
| Dimensions |
375.0 × 334.7 × 53.0mm |
| Net Weight |
2.50kg |
| Gross Weight |
4.10kg |
| Certifications |
CE / FCC |
