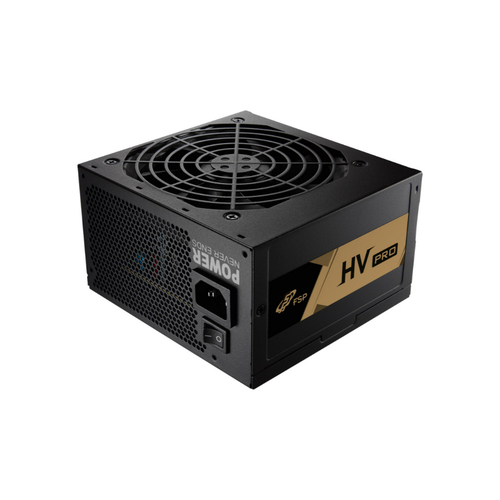

FSP HV PRO 650W 80 PLUS Bronze ATX Power Supply

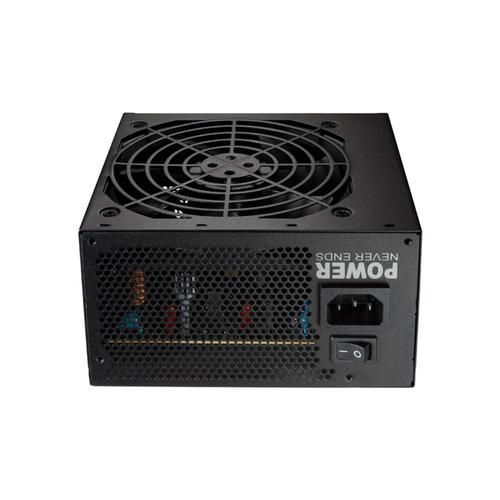

FSP HV PRO 650W 80 PLUS Bronze ATX Power Supply - Image 2
FSP HV PRO 650W 80 PLUS Bronze ATX Power Supply - Image 3

FSP HV PRO 650W 80 PLUS Bronze ATX Power Supply

FSP HV PRO 650W 80 PLUS Bronze ATX Power Supply

  • 650W Continuous Power Output for Gaming and Office PCs
  • 80 PLUS 230V EU Bronze Certified with Up to 88% Efficiency
  • Complies with Intel ATX12V V3.1 & EPS12V V2.92 Standards
  • Active PFC with +12V Single Rail Design
  • DC-to-DC Design for Stable Voltage Output
  • 120mm Silent Long-Life Cooling Fan
  • Durable 450V / 105°C Main Capacitor
  • Complete Protection Including OCP, OVP, OPP and SCP
  • Non-Modular Design with Black Cables
  • Ideal for Gaming PCs, Office Computers and Home Desktop Systems
Categories: , Brand:

Description

Technical Specifications

Specification Details
Brand FSP
Series HV PRO
Model FSP650-51AAC
Product Type ATX Power Supply
Total Output Power 650W Continuous
Efficiency Certification 80 PLUS 230V EU Bronze
Efficiency Up to 88% @ Typical Load
ATX Standard Intel ATX12V V3.1 / EPS12V V2.92
Power Factor Correction Active PFC
Power Design DC-to-DC, +12V Single Rail
Cooling Fan 120mm Silent Sleeve Bearing Fan
Cabling Non-Modular
Main Connector 20+4 Pin ×1
CPU Connector 4+4 Pin ×2
PCIe Connector 6+2 Pin ×2
SATA Connector 5 × SATA
Molex Connector 2 × Peripheral (4-Pin)
Floppy Connector 1 × FDD
Protection OCP, OVP, OPP, SCP
Dimensions 150 × 140 × 86 mm
Application Gaming PC, Office PC, Home Desktop
Warranty 1 Year Limited Warranty
