| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-2CD1023G2-LIU |
| Product Type |

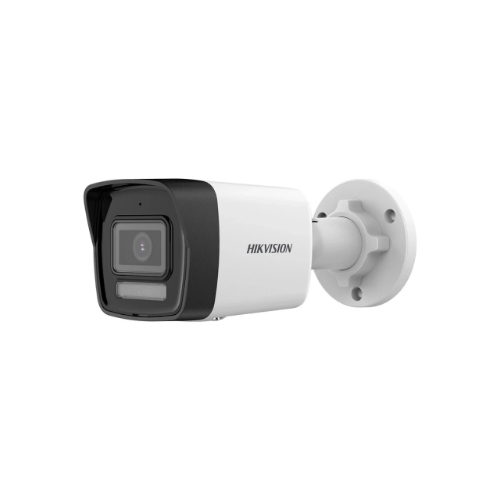

2MP Smart Hybrid Light Fixed Bullet Network Camera |
| Camera Type |
Fixed Bullet IP Camera |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 |
| Effective Resolution |
2 Megapixel |
| Minimum Illumination |
Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Shutter Time |
1/3s to 1/100,000s |
| Day & Night |
IR Cut Filter |
| Lens Type |
Fixed Focal Lens |
| Lens Options |
2.8mm / 4mm |
| Lens Mount |
M12 |
| Aperture |
F1.6 |
| 2.8mm Field of View |
Horizontal: 103°, Vertical: 56°, Diagonal: 121° |
| 4mm Field of View |
Horizontal: 83°, Vertical: 44°, Diagonal: 99° |
| DORI – 2.8mm |
Detect: 45m / Observe: 18m / Recognize: 9m / Identify: 4m |
| DORI – 4mm |
Detect: 56m / Observe: 22m / Recognize: 11m / Identify: 5m |
| Supplement Light Type |
IR / White Light |
| Smart Hybrid Light |
Yes |
| Supplement Light Range |
Up to 30m |
| IR Wavelength |
850nm |
| Main Stream |
50Hz: 25fps at 1920 × 1080 / 1280 × 720; 60Hz: 30fps at 1920 × 1080 / 1280 × 720 |
| Sub Stream |
50Hz: 25fps at 640 × 480 / 640 × 360; 60Hz: 30fps at 640 × 480 / 640 × 360 |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression |
H.265 / H.264 / MJPEG |
| Video Bit Rate |
32Kbps to 8Mbps |
| Bit Rate Control |
CBR / VBR |
| Region of Interest |
1 Fixed Region for Main Stream |
| WDR |
Digital WDR |
| Image Enhancement |
BLC / HLC / 3D DNR / Digital WDR |
| Day/Night Mode |
Day / Night / Auto / Schedule |
| Audio Type |
Mono Sound |
| Built-in Microphone |
Yes |
| Environment Noise Filtering |
Yes |
| Audio Sampling Rate |
8kHz / 16kHz |
| Audio Compression |
G.711u / G.711a / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| Audio Bit Rate |
Up to 160Kbps depending on codec |
| Human Detection |
Supported |
| Vehicle Detection |
Supported |
| Motion Detection |
Supported |
| Video Tampering Alarm |
Supported |
| Privacy Mask |
4 Programmable Polygon Privacy Masks |
| Network Interface |
1 × RJ45 10/100Mbps Self-Adaptive Ethernet |
| Network Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP |
| Simultaneous Live View |
Up to 6 Channels |
| Remote Users |
Up to 32 Users |
| Storage |
MicroSD / MicroSDHC / MicroSDXC up to 512GB, optional |
| PoE |
IEEE 802.3af, Class 3 |
| PoE Power Consumption |
Maximum 6.5W |
| DC Power Supply |
12V DC ±25% |
| Maximum Power Consumption |
Maximum 5W |
| Protection |
IP67 Water & Dust Resistant |
| Material |
Metal & Plastic |
| Angle Adjustment |
Pan 0°–360°, Tilt 0°–90°, Rotation 0°–360° |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
95% or Less, Non-Condensing |
