Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Model | DS-2CE16H0T-ITF(C) |

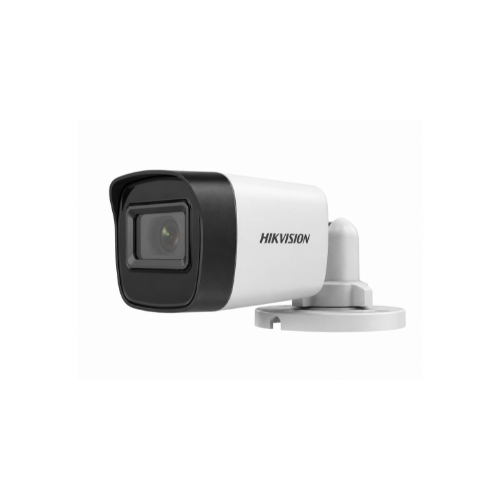

| Product Type | 5MP Fixed Mini Bullet Camera |
| Image Sensor | 5MP CMOS |
| Maximum Resolution | 2560 × 1944 |
| Minimum Illumination | 0.01 Lux @ F2.0, AGC ON; 0 Lux with IR |
| Lens | 2.4mm / 2.8mm / 3.6mm / 6mm Fixed Lens |
| Lens Mount | M12 |
| 2.4mm Field of View | Horizontal 103°, Vertical 81°, Diagonal 142° |
| 2.8mm Field of View | Horizontal 86°, Vertical 63°, Diagonal 120° |
| 3.6mm Field of View | Horizontal 80°, Vertical 63°, Diagonal 112° |
| 6mm Field of View | Horizontal 55°, Vertical 40°, Diagonal 70° |
| IR Technology | EXIR 2.0 |
| IR Night Vision | Up to 30m |
| Day & Night | ICR |
| Day/Night Mode | Auto / Color / B&W |
| Image Parameters | STD / HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR |
| WDR | Digital WDR |
| Image Enhancement | BLC / HLC |
| White Balance | ATW / Manual |
| AGC | Supported |
| TVI Frame Rate | 5MP @ 20fps, 4MP @ 25/30fps, 1080p @ 25/30fps |
| AHD Frame Rate | 5MP @ 20fps, 4MP @ 25/30fps |
| CVI Frame Rate | 4MP @ 25/30fps |
| CVBS | PAL / NTSC |
| Video Output | 1 HD Analog Output |
| Video Signals | TVI / AHD / CVI / CVBS |
| Angle Adjustment | Pan 0°–360°, Tilt 0°–90°, Rotation 0°–360° |
| Signal System | PAL / NTSC |
| Communication | HIKVISION-C |
| Power Supply | 12V DC ±25% |
| Power Consumption | Maximum 4.3W |
| Protection | IP67 Water & Dust Resistant |
| Material | Metal |
| Dimensions | 60.9 × 57.9 × 138.8mm |
| Weight | Approx. 258g |
| Operating Temperature | -40°C to 60°C |
| Humidity | 90% or Less, Non-Condensing |
