Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Model | DS-2CE76D0T-LPFS |

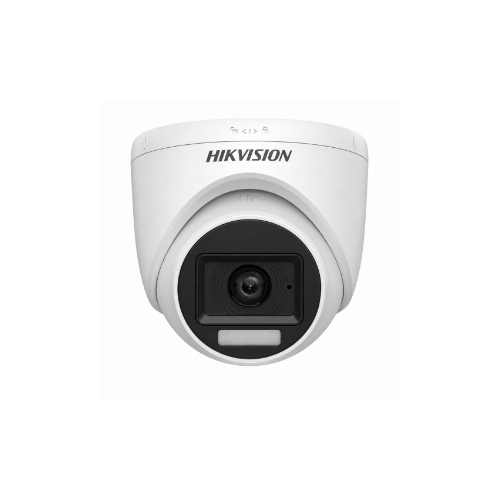

| Product Type | Dual Light Audio Indoor Fixed Turret Camera |
| Image Sensor | 2MP CMOS |
| Maximum Resolution | 1920 × 1080 |
| Minimum Illumination | 0.01 Lux @ F1.6, AGC ON; 0 Lux with IR |
| Lens | 2.8mm / 3.6mm Fixed Focal Lens |
| Lens Mount | M12 |
| 2.8mm Field of View | Horizontal 101°, Vertical 56°, Diagonal 118° |
| 3.6mm Field of View | Horizontal 78°, Vertical 42°, Diagonal 92° |
| Supplement Light | White Light / IR |
| IR Night Vision | Up to 20m |
| White Light Range | Up to 20m |
| Day & Night | ICR |
| Day/Night Mode | Auto / Color / B&W |
| WDR | Digital WDR |
| Image Enhancement | DWDR / BLC / HLC / Global |
| Noise Reduction | 2D DNR |
| White Balance | Auto / Manual |
| Video Output | Switchable TVI / AHD / CVI / CVBS |
| Frame Rate | 1080p @ 25fps / 30fps |
| Microphone | Built-in Microphone |
| Audio | Audio Over Coaxial Cable |
| Angle Adjustment | Pan 0°–360°, Tilt 0°–75°, Rotation 0°–360° |
| Signal System | PAL / NTSC |
| Power Supply | 12V DC ±25% |
| Power Consumption | Maximum 3.3W |
| Material | Plastic |
| Dimensions | 84.6mm × Ø85.02mm |
| Weight | Approx. 156g |
| Operating Temperature | -40°C to 60°C |
| Humidity | 90% or Less, Non-Condensing |
| Communication | HIKVISION-C |
