| Specification |
Details |
| Brand |
Hikvision |
| Model |

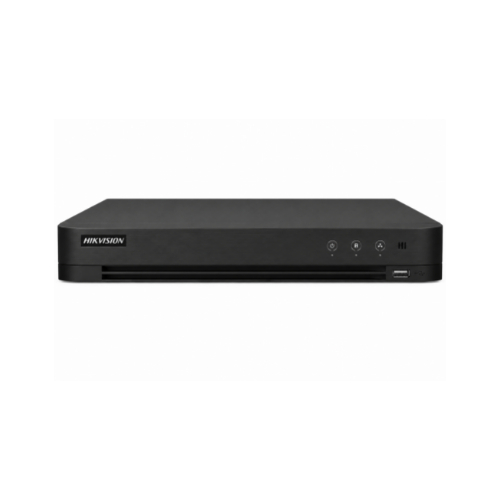

iDS-7216HQHI-M1/E(E) |
| Product Type |
16-Channel AcuSense H.265 DVR |
| DVR Series |
Turbo AcuSense DVR |
| Chassis |
1U |
| Analog Video Input |
16 Channels, BNC, 1.0 Vp-p, 75Ω |
| Video Input Type |
HDTVI / AHD / CVI / CVBS / IP |
| IP Video Input |
Up to 24 Channels |
| Maximum IP Camera Resolution |
Up to 6MP |
| HDTVI Input |
3K Lite / 5MP Lite / 4MP Lite / 1080p / 720p |
| AHD Input |
5MP / 4MP / 1080p / 720p |
| HDCVI Input |
5MP / 4MP / 1080p / 720p |
| CVBS Input |
PAL / NTSC |
| Video Compression |
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Recording Resolution |
3K Lite / 5MP Lite / 4MP Lite / 1080p / 720p / VGA / WD1 / 4CIF / CIF |
| 3K Lite Recording |
Up to 12fps |
| 5MP Lite Recording |
Up to 12fps |
| 4MP Lite Recording |
Up to 15fps |
| 1080p Recording |
Up to 25/30fps depending on mode |
| Video Bitrate |
32 Kbps to 6 Mbps |
| Dual Stream |
Supported |
| Synchronous Playback |
16 Channels |
| Audio |
Audio Over Coaxial Cable |
| Audio Compression |
G.711u |
| Audio Bitrate |
64 Kbps |
| Facial Detection |
Up to 4 Channels |
| Face Detection & Capture |
Face Picture Detection, Capture and Search |
| Motion Detection 2.0 |
Deep Learning-Based Human and Vehicle Classification on Analog Channels |
| Perimeter Protection |
Up to 4 Channels; Line Crossing and Intrusion Detection |
| Human / Vehicle Classification |
Supported through Deep Learning |
| Smart Search |
Supported |
| HDMI Output |
1 Channel, up to 4K UHD |
| VGA Output |
1 Channel |
| HDMI / VGA Output |
Simultaneous Output |
| Network Interface |
1 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet |
| Network Bandwidth |
Up to 96 Mbps |
| Network Protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Remote Access |
Hik-Connect / DDNS |
| Wi-Fi |
Supported via Compatible USB Wi-Fi Dongle |
| HDD Interface |
1 × SATA |
| Maximum HDD Capacity |
Up to 10TB |
| USB Interface |
USB 2.0 |
| Serial Interface |
RS-485, Half-Duplex |
| Power Supply |
12V DC |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10% to 90% |
| Installation |
1U Rack / Desktop Installation |
