Technical Specifications
| Specification | Details |
|---|---|
| Brand | IMOU |

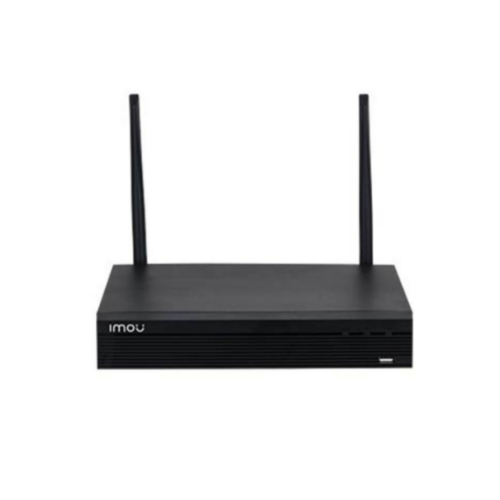

| Model | NVR1104HS-W-S2 |
| Product Type | 4-Channel Wireless Wi-Fi Network Video Recorder |
| Camera Channels | 4 Channels |
| Camera Connection | Wi-Fi / Wired Ethernet |
| Wireless Standard | IEEE 802.11b/g/n, 2.4GHz |
| Wireless Technology | 2×2 MIMO |
| Wireless Bandwidth | 16 Mbps Incoming / 16 Mbps Recording |
| Wired Network Bandwidth | 40 Mbps Incoming / 40 Mbps Recording / 20 Mbps Outgoing |
| Maximum Camera Resolution | Up to 6MP |
| Decoding Capability | 1ch @ 6MP / 2ch @ 4MP / 4ch @ 1080P / 8ch @ 720P |
| Real-Time Decoding | 4ch @ 1080P, 25fps |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Video Output | 1 × HDMI / 1 × VGA |
| Maximum HDMI Resolution | 1080P |
| HDD Interface | 1 × SATA |
| Maximum HDD Capacity | Up to 8TB |
| Recording Modes | Manual / Scheduled / Motion Detection |
| ONVIF | Profile T / S / G |
| Compatible Cameras | IMOU / Dahua / X-Security / ONVIF-Compatible IP Cameras |
| Network Port | 1 × RJ45 10/100Mbps Ethernet |
| USB Ports | 2 × USB 2.0 |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| Two-Way Audio | Supported |
| Mobile Application | IMOU Life |
| Remote Access | P2P / Mobile Remote Access |
| Power Supply | 12V DC / 1A |
| Power Consumption | ≤10W, without HDD |
| Operating Temperature | -10°C to +45°C |
| Operating Humidity | 10%–93% RH |
| Installation | Desktop / Rack |
| Dimensions | 260.3 × 247.3 × 44.7mm |
| Net Weight | Approx. 0.824kg |
