| Specification |
Details |
| Brand |
Tiandy |
| Product Name |

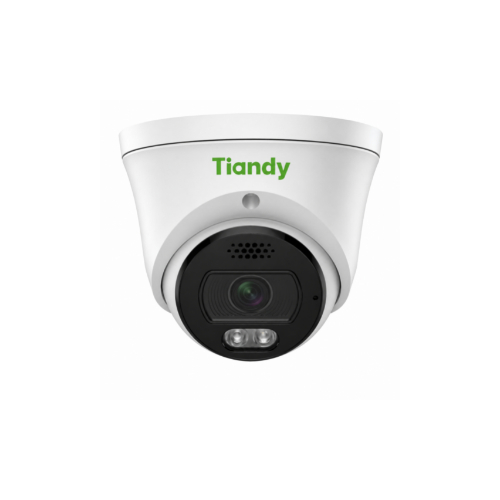

Tiandy TC-C320N 2MP Color Maker Turret Network Camera |
| Model |
TC-C320N/I3/E/Y/2.8mm/V2.0 |
| Camera Type |
2MP Color Maker Turret IP Camera |
| Image Sensor |
1/3-inch Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 @ 30fps (Full HD) |
| Lens |
2.8mm Fixed Lens |
| Minimum Illumination |
Color: 0.02 Lux @ F1.6 (AGC ON), 0 Lux with IR |
| Night Vision |
Full-Color Night Vision with White LED & Smart IR |
| IR Distance |
Up to 30m |
| White Light Distance |
Up to 15m |
| Built-in Microphone |
Yes |
| Audio |
Built-in Microphone with G.711A / G.711U Compression |
| Video Compression |
S+265, H.265, H.264B, H.264M & H.264H |
| Wide Dynamic Range |
Digital WDR (DWDR) |
| Image Enhancement |
3D DNR, BLC, HLC, AGC & Defog |
| Smart Features |
Motion Detection, Privacy Mask & IP Address Conflict Detection |
| Network Protocols |
HTTP, TCP/IP, UDP, DHCP, DNS, NTP, RTSP, IPv4 |
| ONVIF |
ONVIF Profile S/T Supported |
| Network Interface |
RJ45 10/100 Mbps Ethernet |
| Power Supply |
PoE (IEEE 802.3af), Max. 3W |
| Weather Protection |
IP67 Weatherproof |
| Operating Temperature |
-30°C to +60°C |
| Applications |
Home, Office, Shop, Warehouse, Factory, School & Commercial Security |
| Warranty |
1-Year Limited Warranty |
