Technical Specifications
| Specification | Details |
|---|---|
| Brand | Tiandy |

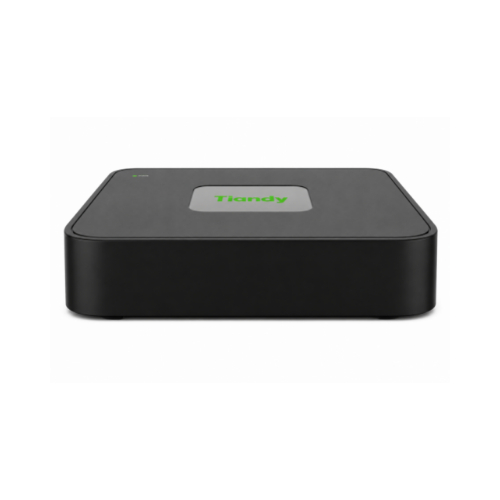

| Product Name | Tiandy TC-R3104 4CH PoE Network Video Recorder |
| Model | TC-R3104 |
| Type | Network Video Recorder (NVR) |
| Channel | 4 Channel IP Camera Input |
| PoE Ports | 4 × PoE Ports |
| Recording Resolution | Up to 6MP |
| Incoming Bandwidth | 60Mbps |
| Outgoing Bandwidth | 40Mbps |
| Decoding Capability | 1 × 6MP / 3 × 1080P |
| Video Output | HDMI / VGA Output |
| USB Interface | 2 × USB 2.0 |
| Hard Disk Support | 1 SATA HDD |
| Maximum HDD Capacity | Up to 6TB |
| Housing Material | Aluminium + Plastic Housing |
| Total Power | 28W PoE Total Power |
| Power Supply | DC48V 1A |
| Application | Home, Office, Retail Shop, Warehouse & CCTV Surveillance System |
| Warranty | 1-Year Limited Warranty |
