Technical Specifications
| Specification | Details |
|---|---|
| Brand | Tiandy |

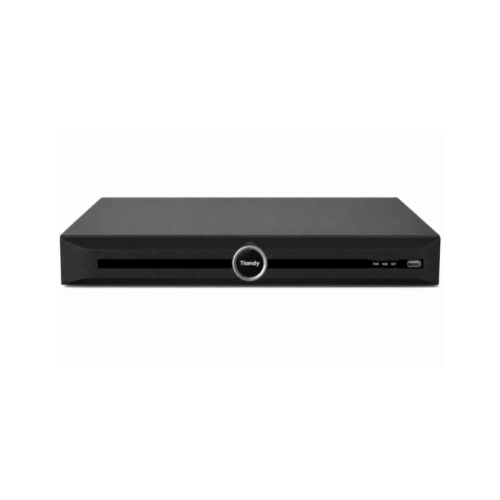

| Product Name | Tiandy TC-R3110 10CH Intelligent Network Video Recorder |
| Model | TC-R3110 I/B/K/V3.1 |
| Device Type | Network Video Recorder (NVR) |
| IP Camera Input | 10 Channels |
| Recording Resolution | Up to 8MP |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 80Mbps |
| Video Compression | S+265 / H.265 / H.264 |
| Decoding Capability | 2×8MP / 8×1080P / 10×720P |
| Video Output | HDMI & VGA Output |
| HDMI Resolution | Up to 4K Resolution |
| Simultaneous Output | HDMI & VGA Supported |
| USB Interface | 2 × USB 2.0 |
| Alarm Interface | Alarm Input 4 / Output 1 |
| Storage | 1 SATA HDD Support |
| ANR | Automatic Network Replenishment Supported |
| Intelligent Analytics | Supported |
| VCA Search | Heatmap, Early Warning Search & Behavior Search |
| Application | Business, Office, Warehouse, Factory & Professional CCTV Surveillance |
| Warranty | 1-Year Limited Warranty |
