Technical Specifications
| Specification | Details |
|---|---|
| Brand | Tiandy |

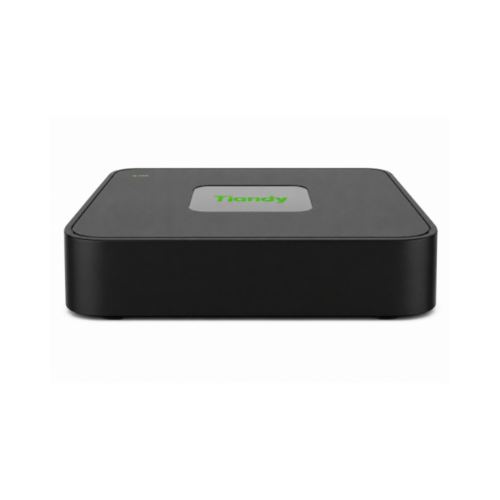

| Product Name | Tiandy TC-R3110 10CH PoE Network Video Recorder |
| Model | TC-R3110 |
| Device Type | Network Video Recorder (NVR) |
| IP Camera Channels | Up to 10 Channels |
| PoE Ports | 8 × RJ45 PoE Ports |
| Incoming Bandwidth | 60Mbps |
| Outgoing Bandwidth | 40Mbps |
| Recording Resolution | Up to 6MP |
| Video Compression | S+265, H.265, S+264, H.264 |
| Decoding Capability | 1 × 6MP @30fps / 1 × 1080P @30fps |
| Synchronous Playback | 4 Channel Playback Supported |
| Video Output | HDMI / VGA Output |
| HDMI Resolution | Up to 4K Output |
| USB Interface | USB Ports Supported |
| Hard Disk Support | 1 SATA HDD |
| Maximum HDD Capacity | Up to 8TB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet Port |
| PoE Interface | 8 × RJ45 10/100 Mbps PoE Ports |
| Application | Home, Office, Retail, Warehouse, Factory & Professional CCTV System |
| Warranty | 1-Year Limited Warranty |
