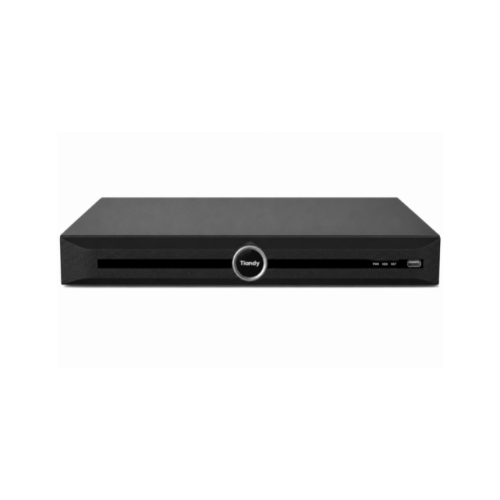

Tiandy TC-R3220 20CH Intelligent Network Video Recorder

Tiandy

Tiandy TC-R3220 20CH Intelligent Network Video Recorder

Tiandy TC-R3220 20CH Intelligent Network Video Recorder (2 HDD)

  • 20 Channel Professional Intelligent Network Video Recorder for CCTV Systems
  • Supports Recording Resolution up to 8MP Ultra HD
  • 160Mbps Incoming & 64Mbps Outgoing Bandwidth Performance
  • Powerful Decoding Capability up to 2×8MP Video Streams
  • Supports S+265 / H.265 / H.264 Video Compression Technology
  • HDMI & VGA Simultaneous Video Output
  • HDMI Output Supports up to 4K Ultra HD Display
  • Advanced AI Intelligent Analytics by Camera
  • VCA Smart Search with Heatmap, Early Warning & Behavior Search
  • Face Search, Duty Search & Thermographic Retrieval Supported
  • ANR Technology for Reliable Video Recording
  • Alarm Input / Output Integration Support
  • Dual HDD Support for Large Video Storage Capacity
  • Professional NVR Solution for Enterprise CCTV Surveillance

Category NVR

Request Quotation WhatsApp Enquiry

Pricing depends on site requirements. We quote hardware, installation and training as one package.

Technical Specifications

Specification Details
Brand Tiandy
Product Name Tiandy TC-R3220 20CH Intelligent Network Video Recorder (2 HDD)
Model TC-R3220 I/B/K/V3.1
Device Type Network Video Recorder (NVR)
IP Camera Input 20 Channels
Recording Resolution Up to 8MP
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 64Mbps
Video Compression S+265 / H.265 / H.264
Decoding Capability 2×8MP / 8×1080P / 16×720P
Video Output 1 HDMI + 1 VGA Simultaneous Output
HDMI Resolution Up to 4K Ultra HD Output
USB Interface 2 × USB 2.0
Alarm Interface Alarm Input 4 / Alarm Output 1
Storage 2 SATA HDD Support
ANR Function Automatic Network Replenishment Supported
AI Analytics AI by Camera Supported
VCA Search Heatmap, Early Warning Search & Behavior Search
Advanced Search Face Search, Duty Search & Thermographic Retrieval
PoE Support 30W Per PoE Port
Total Power 200W Total Power
Application Commercial Building, Factory, Warehouse, Office & Enterprise CCTV System
Warranty 1-Year Limited Warranty

Related products

Hikvision

Hikvision iDS-7208HTHI-M2/S(C) 8CH 8MP 4K AcuSense DVR Recorder

Hikvision iDS-7208HTHI-M2/S(C) 8CH AcuSense DVR Recorder 8 Channel 8MP 4K AcuSense Turbo HD DVR Recorder Deep Learning Human & Vehicle Classification Detection Supports HDTVI / AHD / CVI / CVBS / IP Camera Input Up to 16 Channel IP Camera Connection Support Efficient H.265 Pro+ Video Compression Technology 4K Ultra HD HDMI Video Output Smart Motion Detection 2.0 Function Audio Over Coaxial Cable Support 2 SATA HDD Interface for Large Storage Remote Monitoring with Hik-Connect App

View Details for Hikvision iDS-7208HTHI-M2/S(C) 8CH 8MP 4K AcuSense DVR Recorder Enquiry about Hikvision iDS-7208HTHI-M2/S(C) 8CH 8MP 4K AcuSense DVR Recorder on WhatsApp

IMOU

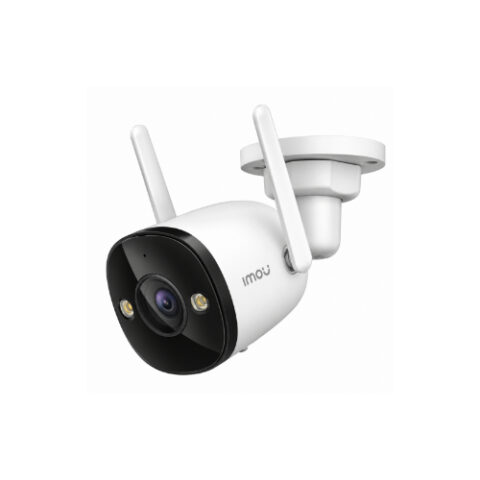

IMOU Bullet 3 3MP Outdoor WiFi Security Camera

IMOU Bullet 3 3MP Outdoor WiFi Security Camera 3MP High Resolution Outdoor WiFi Bullet Camera Clear 2K Video Quality Security Monitoring Smart Human Detection Technology Full Color Night Vision with Smart Spotlight H.265 Video Compression for Efficient Storage Built-in Microphone & Speaker Two-Way Audio Active Deterrence with Siren Function WiFi Connection with IMOU Life App Support Micro SD Card Storage Support IP67 Weatherproof Outdoor Protection

View Details for IMOU Bullet 3 3MP Outdoor WiFi Security Camera Enquiry about IMOU Bullet 3 3MP Outdoor WiFi Security Camera on WhatsApp

IMOU

IMOU Cruiser 2 3MP Smart WiFi Pan & Tilt Security Camera

IMOU Cruiser 2 3MP Smart WiFi Pan & Tilt Security Camera 3MP High Resolution Outdoor WiFi Security Camera Pan & Tilt Function for 360° Wide Area Monitoring Smart Color Night Vision for Clear Full Color Images AI Human Detection for Accurate Security Alerts Smart Tracking Automatically Follows Moving Objects Built-in Spotlight & Security Siren Active Deterrence Two-Way Talk with Built-in Microphone & Speaker H.265 Video Compression for Efficient Storage Remote Monitoring with IMOU Life Mobile App Weatherproof Outdoor Security Camera

View Details for IMOU Cruiser 2 3MP Smart WiFi Pan & Tilt Security Camera Enquiry about IMOU Cruiser 2 3MP Smart WiFi Pan & Tilt Security Camera on WhatsApp

Hikvision

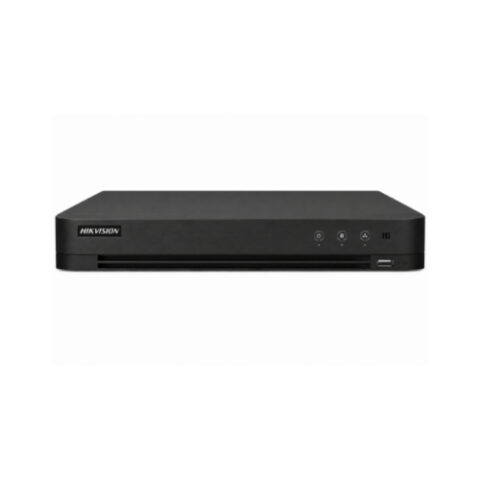

Hikvision iDS-7216HUHI-M2/S 16CH 5MP AcuSense DVR Recorder
