Technical Specifications
| Specification | Details |
|---|---|
| Brand | Tiandy |

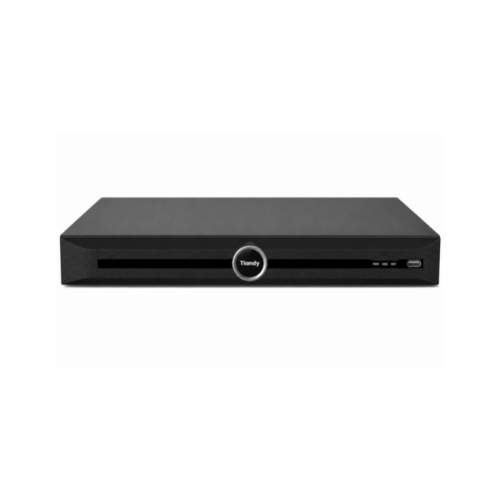

| Product Name | Tiandy TC-R3240 40CH Intelligent Network Video Recorder (2 HDD) |
| Model | TC-R3240 I/B/N/H/V4.0 |
| Device Type | Network Video Recorder (NVR) |
| IP Camera Input | Up to 40 Channels |
| Incoming Bandwidth | 400Mbps |
| Outgoing Bandwidth | 400Mbps |
| Video Compression | S+265, H.265, S+264, H.264 |
| Decoding Capability | 16MP @30fps ×2 / 1080P @30fps ×16 |
| Synchronous Playback | 16 Channel Playback Supported |
| Video Output | Independent HDMI & VGA Outputs |
| HDMI Resolution | Up to 4K Ultra HD |
| Storage | 2 SATA HDD Support |
| Maximum HDD Capacity | Up to 10TB Per HDD |
| Network Interface | 2 × RJ45 10/100/1000Mbps Ethernet Ports |
| Application | Commercial Building, Factory, Warehouse, Shopping Mall, Hotel & Enterprise CCTV System |
| Warranty | 1-Year Limited Warranty |
