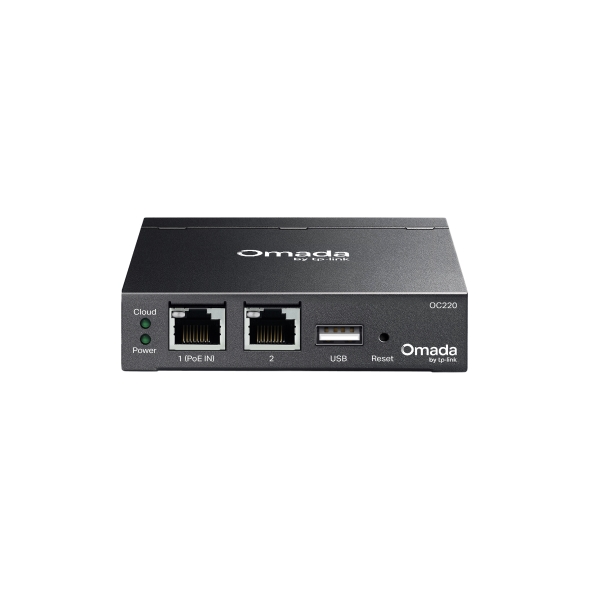

TP-Link Omada OC220 Hardware Controller – Centralized Network Management

TP-Link

TP-Link Omada OC220 Hardware Controller – Centralized Network Management

TP-Link Omada OC220 Hardware Controller – Centralized Network Management

  • Compact Omada hardware controller designed for centralized network management
  • Supports up to 100 Omada Access Points, 10 Omada Gateways and 20 Omada Switches
  • Supports up to 2 supported DeltaStream GPON OLTs
  • Provides centralized management and monitoring of Omada networking devices
  • Supports hybrid cloud access for convenient remote network management
  • Manage and monitor the network through the Omada App or Web UI
  • Features a Quad-Core Cortex-A53 processor running at 2.0GHz per core
  • Includes 2GB DDR4 RAM and 8GB eMMC storage
  • Equipped with 2 × Gigabit Ethernet ports for reliable network connectivity
  • Supports 802.3af/at PoE power and Micro-USB power input
  • Includes 1 × USB 2.0 port for data backup and management functions
  • Fanless design provides quiet and reliable operation
  • Durable metal casing provides a professional and robust installation solution
  • Supports multi-site and multi-tenant network management
  • Compact desktop or wall-mount installation design
  • Ideal for offices, retail shops, hotels, schools, warehouses and business networks
  • Suitable for professional Omada SDN network deployments and centralized network management

Category Switch

Request Quotation WhatsApp Enquiry

Pricing depends on site requirements. We quote hardware, installation and training as one package.

Technical Specifications

Specification Details
Brand TP-Link
Product Series Omada
Model OC220
Product Type Omada Hardware Controller
Management Type Centralized Omada Network Management
Management Capacity Up to 100 Omada APs, 10 Omada Gateways and 20 Omada Switches
DeltaStream GPON OLT Support Up to 2 supported OLTs
Processor Quad-Core Cortex-A53 @ 2.0 GHz/Core
Memory 2GB DDR4 RAM
Storage 8GB eMMC + 4MB NOR Flash
Ethernet Ports 2 × 10/100/1000Mbps Gigabit Ethernet Ports
USB Port 1 × USB 2.0
Micro-USB Port 1 × Micro-USB for Power
PoE Power 802.3af/at PoE
Alternative Power Micro-USB DC 5V / Minimum 1A
Maximum Power Consumption 11.2W via PoE with USB 2.0 connected
Power Consumption via Micro-USB 3.5W without USB 2.0 connected
Cloud Access Supported
Multi-Site Management Supported
Multi-Tenant Management Supported
Maximum Sites 100
Maximum Accounts 1000
Backup & Restore Supported
Automatic Backup Supported
Open API Supported
Installation Desktop or Wall Mount
Cooling Fanless Design
Casing Metal
Security Lock Kensington Lock
Dimensions 100 × 98 × 25 mm
Net Weight 0.305 kg
Operating Temperature 0°C to 40°C
Product Type Hardware Network Controller
