TSC

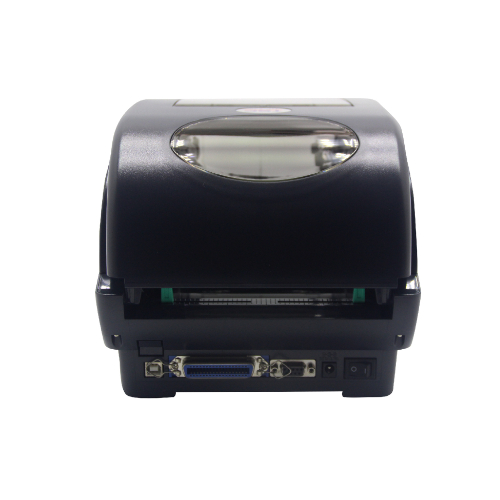

TSC TTP-247 Desktop Thermal Transfer Barcode Label Printer

203 DPI High-Resolution Barcode & Label Printing
Supports Thermal Transfer & Direct Thermal Printing
Fast Printing Speed up to 177 mm/sec (7 ips)
Maximum Print Width: 108 mm (4.25")
300-Meter Ribbon Capacity for High-Volume Printing
USB 2.0 & RS-232 Connectivity (Ethernet Optional)
Prints Barcode Labels, Shipping Labels, Product Labels, Asset Tags & Price Labels
Supports 1D & 2D Barcode Printing
Compatible with Windows, Linux & macOS
Ideal for Retail, Warehouses, Logistics, Manufacturing, Healthcare & Inventory Management

Pricing depends on site requirements. We quote hardware, installation and training as one package.

Technical Specifications

SPECIFICATION	DETAILS
Brand	TSC
Product Name	TSC TTP-247 Desktop Thermal Transfer Barcode Label Printer
Model	TTP-247
Print Method	Thermal Transfer & Direct Thermal
Resolution	203 DPI (8 dots/mm)
Maximum Print Speed	Up to 177 mm/sec (7 ips)
Maximum Print Width	108 mm (4.25″)
Maximum Print Length	2,286 mm (90″)
Memory	8 MB Flash Memory, 8 MB SDRAM
Processor	32-bit RISC Processor
Interfaces	USB 2.0, RS-232 Serial (Standard), Ethernet (Optional)
Media Type	Continuous, Gap, Black Mark, Fan-Fold, Tags & Labels
Ribbon Capacity	300 m Ribbon (1″ Core)
Supported Barcode	1D & 2D Barcodes
Supported Operating Systems	Windows, Linux, macOS
Dimensions	314 × 213 × 188 mm
Weight	2.8 kg
Applications	Retail, Warehousing, Manufacturing, Logistics, Healthcare, Asset Management, Inventory Control & Shipping Labels
Warranty	1-Year Limited Warranty
