Technical Specifications
| Specification | Details |
|---|---|

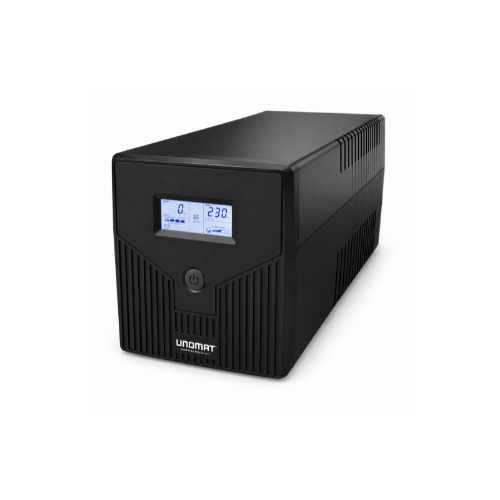

| Model | UM2000VA |
| Capacity | 2000VA |
| Input Voltage | 220 / 230 / 240Vac |
| Voltage Range | 140V – 300Vac |
| Input Frequency | 50/60Hz (Auto Sensing) |
| Output Voltage Regulation | ±10% |
| Output Frequency | 50/60Hz ±1Hz |
| Transfer Time | Typical 4–8ms, Maximum 13ms |
| Waveform | Simulated Sinewave |
| Battery Voltage | 24Vdc |
| Battery Type | 12V / 9Ah × 2 |
| Recharge Time | 6–8 Hours to 90% Capacity |
| Display | LCD Display |
| Status Indicators | AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, Battery Low |
| Protection | Short Circuit, Overload, Overcharge & Over-discharge Protection |
| Communication Port | USB / RS232 |
| Operating Humidity | 0–90% RH @ 0–40°C (Non-condensing) |
| Noise Level | Less than 55dB |
| Dimensions (D × W × H) | 380 × 158 × 198 mm |
| Weight | Approx. 10.5 kg |
